Yr Series 4-50 Ton Hydraulic Split Bearing Puller for Industrial Applications and B2B Procurement

Certification:	RoHS, ISO, CE
Condition:	New
Automatic Grade:	Semi-Automatic

Basic Information

Model NO.

YR

Usage

Petroleum, Construction, Metallurgy

Type

Hydraulic Bolt Tensioners

Models

Optional

OEM/ODM

Accepted

Tool Set

Claws, Hydraulic Cylinder, Hand Pump, Hose

Transport Package

Plastic/Wooden/Carton Case

HS Code

8467890000

Product Description

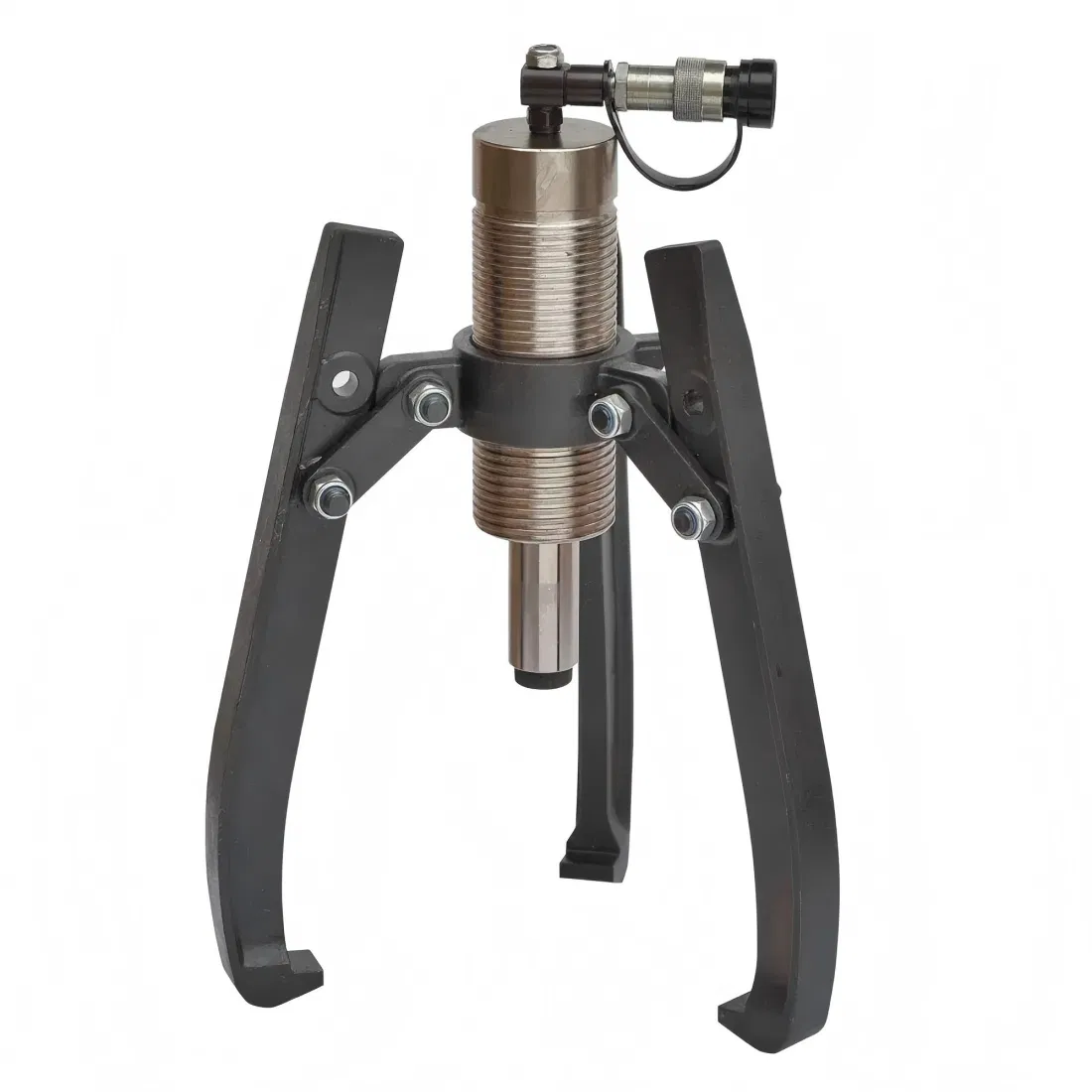

YR Series 4-50 Ton Split Hydraulic Bearing Puller

Split hydraulic pullers are essential tools for disassembling shaft mating parts such as bearings or couplings. Widely utilized in railway vehicle maintenance, machinery installation, mine maintenance, and construction support, these tools efficiently disassemble round workpieces including pulleys and gears across various mechanical equipment.

Independent Design Integrated hydraulic system for standalone operation.

360° Swivel Coupler Design ensures safe operation and easy positioning in tight spaces.

Forged Jaws Specially treated forged parts provide optimum strength and long service life.

Safety Valve Unique safety valve limits applied force to reduce risk of overloading.

Corrosion Protection Manganese phosphate coating ensures durability in harsh environments.

Flexible Claw Config 2/3-claw combination puller head allows for versatile setup.

Technical Specifications

Model	Pulling Capacity (T)	Drawing Depth (mm)	Disassembly Diameter (mm)	Stroke (mm)	Weight (Kg)
YR-4	4	185	255	60	4.5
YR-6	6	245	330	70	5.4
YR-8	6	230	350	85	7.4
YR-12	12	260	375	85	9.5
YR-20	20	350	520	111	23
YR-30	30	435	550	111	35
YR-50	50	635	615	143	50

After Sales Service

Standard Warranty 12 months or 2,000 operating hours (whichever comes first).

Extended Warranty Optional coverage available up to 36 months.

Global Support 24/7 technical assistance and prompt spare parts supply.

Training Services Comprehensive on-site or remote operation and maintenance training.

Manufacturer Profile

Established in 2012, this high-technology enterprise integrates research, development, production, and service of high-end hydraulic tools. The modern production plant incorporates internationally advanced facilities for hydraulic torque wrenches, cylinders, pullers, and pumps.

The product range spans five major categories: Bolting tools (hydraulic and electric torque wrenches), hydraulic lifting tools (jacks up to large tonnage), hydraulic pulling tools, flange tools, and power packs. With a commitment to innovation, several products have attained national invention patents and passed rigorous international standards including CE, ISO14001, and ISO9001 certifications.

Frequently Asked Questions

1. What after-sales service do you provide?

All products enjoy a 12-month warranty and lifetime support. We provide installation guidance, free repair or replacement of parts during the warranty period, and remote video consultations for technical solutions.

2. Do you have local agents or service outlets?

Our products are sold globally across Germany, the USA, Australia, and more. We have distributors in multiple countries and continue to expand our international service center network to better support local customers.

3. How long does it take to deliver the product?

In-stock products are usually shipped within 5-10 working days. For customized orders or out-of-stock items, the production and delivery cycle is approximately 20-30 days.

4. Can you deliver to my local area?

Yes, we provide door-to-door logistics services. You can choose between various transportation modes including sea, air, railway, road, or multimodal express delivery based on your needs.

5. What are the payment terms?

Standard terms include T/T at sight. For customized products, a 30%-50% deposit is required with the balance settled before delivery. Special arrangements like L/C may be negotiated.

6. Are your tools certified?

Yes, our manufacturing process and products are certified under CE, ISO9001, and ISO14001 standards, ensuring high quality and international safety compliance.
