Integral Heavy Loading Hydraulic Gear Bearing Puller

1 / 5

Integral Heavy Loading Hydraulic Gear Bearing Puller

Customization:	Available
After-sales Service:	Technical Support
Warranty:	12months

Send Inquiry

Product Description

Basic Specifications

Model NO.

HHL-5, HHL-10, HHL-20, HHL-30, HHL-50

Type

Hydraulic Gear Puller

Handle Material

Rubber

Tonnage

5 ~ 50 Ton

Transport Package

Plastic Box

Specification

CE, ISO9001: 2008

HS Code

84678900

Capacity

1000PCS/Month

Integral Hydraulic Gear Puller Features

Compact & Portable: The integral pullers are compact and lightweight, making them easy to carry and operate. Extensively used in factories and repair stations.

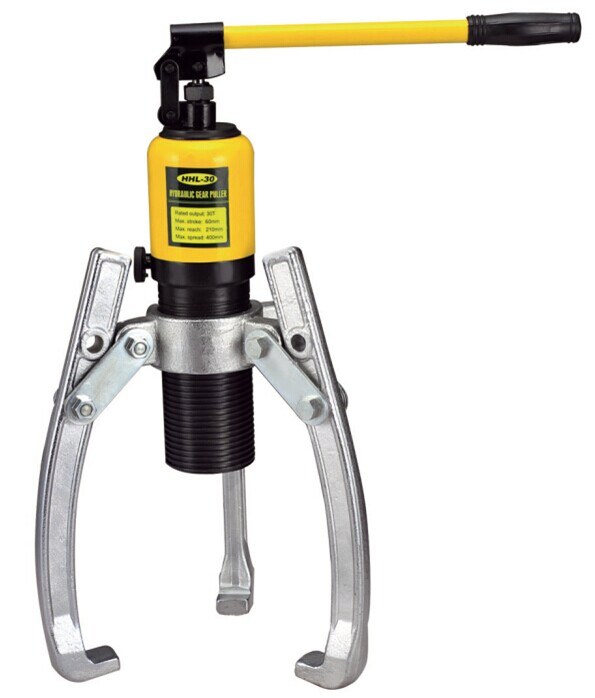

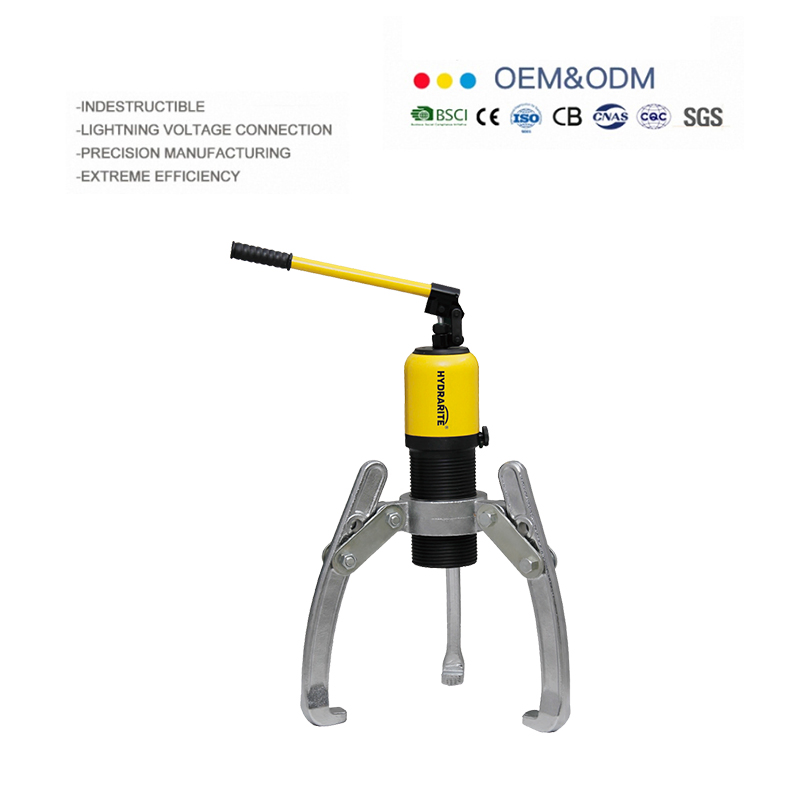

Versatile Design: Both 2-jaw and 3-jaw styles are available to suit different pulling requirements.
360° Operation: Removable handles can be pressed in any direction (360°), benefiting use in limited or restricted spaces.
High-Durability Piston: Features a high-quality return piston for quick retraction. Piston rod is hard chrome plated for safety and long lifetime.
Premium Build: Cylinder body is blacken treated. Claws and frame are forged with high-strength alloy steel, resistant to deformation and chrome plated.

Technical Parameters

Model	HHL-5	HHL-10	HHL-20	HHL-30	HHL-50
Rated Output (T)	5	10	20	30	50
Max. Spread (mm)	200	250	350	400	500
Max. Stroke (mm)	50	50	60	60	60
Weight (kg)	7.5	11	19	25	45
Volume (cm)	443832	442136	434014	482018	522522

Product Gallery

Frequently Asked Questions

What is the difference between 2-jaw and 3-jaw configurations?

The 3-jaw configuration provides more even distribution of pulling force and is generally more stable, while the 2-jaw setup is ideal for working in confined spaces where a 3rd jaw cannot fit.

How does the 360° handle benefit the user?

The handle can be rotated and pressed from any angle, which allows the operator to maintain the most ergonomic position and use the tool effectively even in very tight mechanical environments.

Is the hydraulic gear puller easy to maintain?

Yes, the hard chrome plating on the piston rod and the forged alloy steel claws are designed for high durability and resistance to wear and corrosion, requiring minimal maintenance.

What is the maximum pulling capacity available?

The HHL series offers a wide range of capacities, from the portable 5-ton HHL-5 model up to the heavy-duty 50-ton HHL-50 model.

Is the tool provided with a storage case?

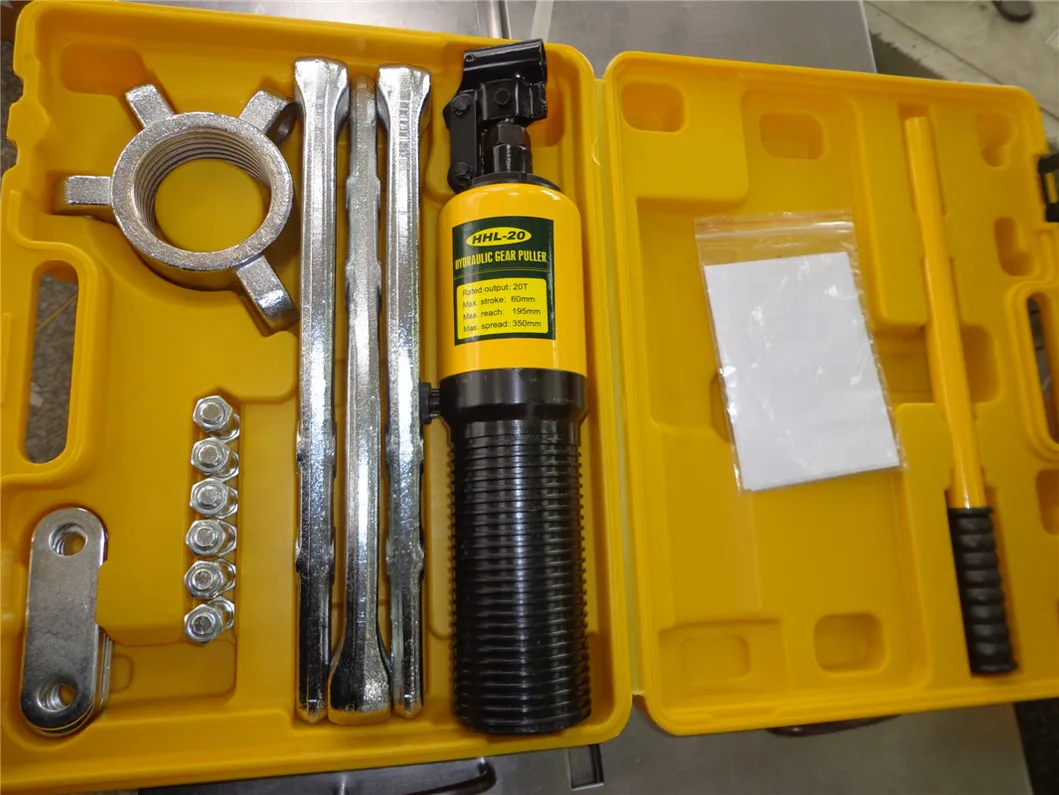

Yes, all models in this series are packed in a high-quality plastic box (carrying case) for easy transport and protection of the hydraulic components.

Can the handle be removed during use?

The handle is designed to be removable for better storage and to allow for adjustments in tight spaces while positioning the tool.
