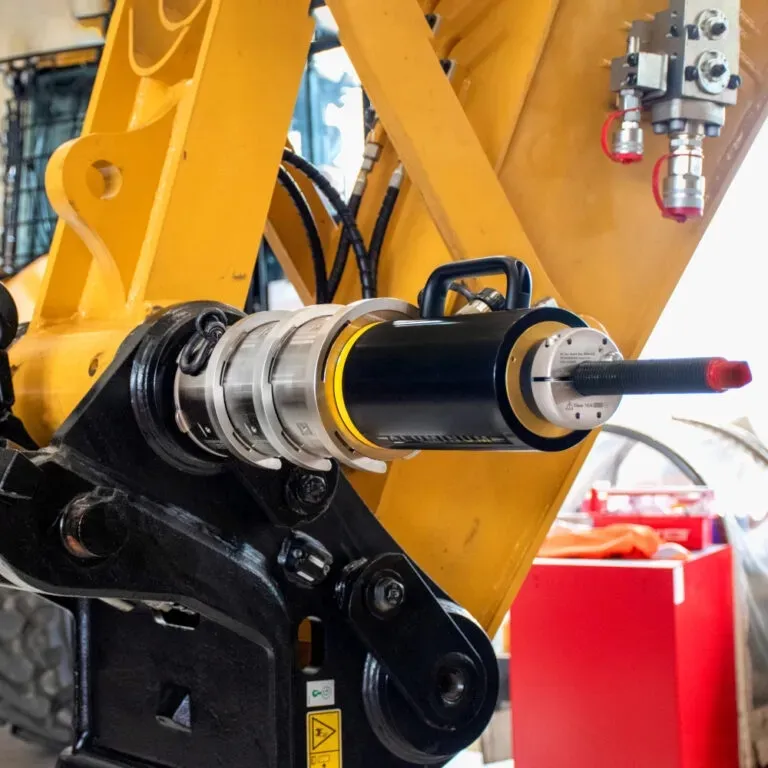

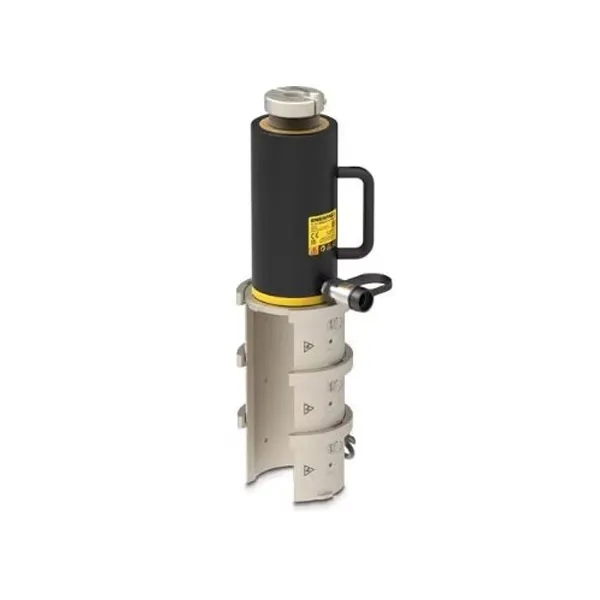

The PPH Series Hydraulic Pin Extractors provide a faster, safer, and easier pin extraction solution for heavy machinery, mining, and construction equipment maintenance. Designed to replace traditional and DIY solutions, this kit significantly speeds up pin removal while ensuring ergonomic safety for the operator.
| Model | Capacity (Ton/Kn) | Stroke (mm) | Folded Height (mm) | Oil Capacity (cm³) | Kit Weight (kg) | Quick Nut Internal Thread |
|---|---|---|---|---|---|---|
| PPH-40 | 40(358) | 100 | 615 | 511 | 22.5 | 1″ – 14 UNS, 1¼” – 12 UNF, M30 x 3.5 |
| PPH-66 | 66(587) | 100 | 671 | 847 | 47.5 | 1½” – 12 UNF, 1¼” – 12 UNF, M36 x 4, M48 x 5 |

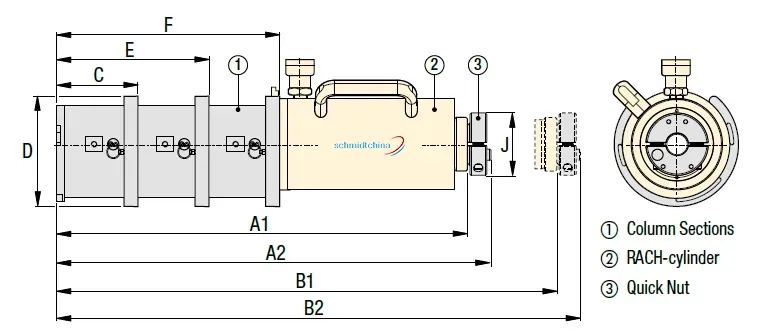

| Model Number | Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A1 | A2 | B1 | B2 | C | D | E | F | J | |
| PPH-40 | 582 | 615 | 682 | 715 | 114 | 178 | 215 | 316 | 89 |
| PPH-66 | 630 | 671 | 730 | 771 | 114 | 241 | 215 | 316 | 110 |

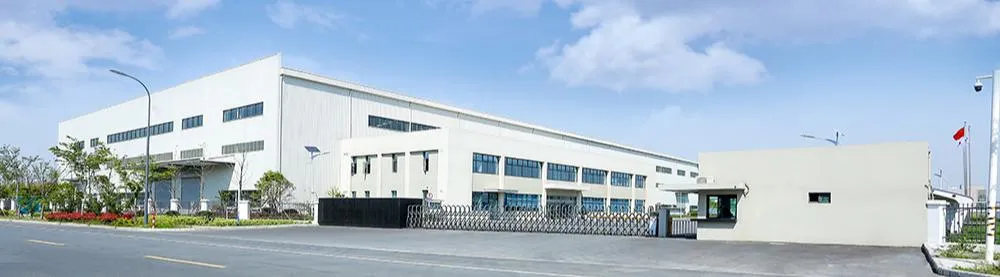

Established in 2012, we are a high-technology enterprise focused on integrating research, development, production, and service of hydraulic tools. Our product range includes hydraulic torque wrenches, hydraulic cylinders, nut cutters, pullers, and electric wrenches. Our modern production plant incorporates internationally advanced manufacturing facilities, processing lines, and rigorous assembly standards.
With over 10 years of industry experience, our technology meets the highest industry standards. We have successfully obtained CE certification, ISO14001, and ISO9001 certifications, alongside numerous national invention patents for our innovative hydraulic solutions.
