High Capacity Hydraulic Puller 3 to 80 Ton Schmidt Puller Supplier in China for Global B2B Buyers

Certification:	RoHS, ISO, CE
Condition:	New
Automatic Grade:	Semi-Automatic

Basic Specifications

Model NO.

YB

Usage

Petroleum, Construction, Metallurgy

Type

Hydraulic Bolt Tensioners

OEM/ODM

Accepted

Capacity

10000PCS/Year

HS Code

8467890000

Package Size

40.00cm * 33.00cm * 40.00cm

Gross Weight

20.000kg

Product Description

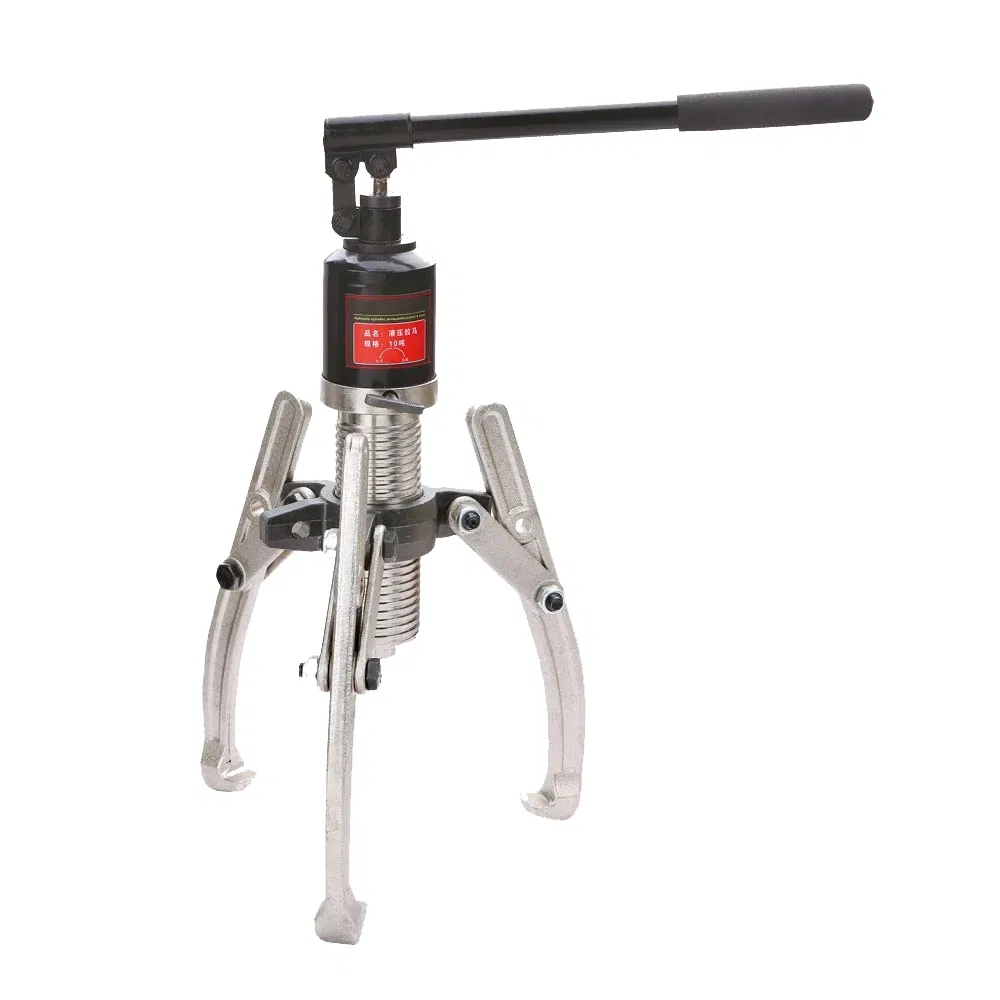

YB Series 3-80 ton High Capacity Hydraulic Puller

Pullertop integral hydraulic pullers come with a built-in hydraulic hand pump, eliminating the need for extra hand pumps and hydraulic hose setups. This self-contained design allows for efficient operation by a single person.

Versatile Head: 2/3 jaws combination head allows installation of 2 or 3 jaws depending on space limitations.
Durable Construction: Jaws are made from forged parts with special treatment for maximum strength and longevity.
360° Operation: Rotary handle swivel sleeves allow pumping in all directions.
Overload Protection: Unique safety valve designed to limit applied force and reduce risk of overload.
Easy Centering: Spring-loaded center point of the hydraulic spindle ensures accurate positioning on the shaft.

Technical Parameters

Model	Capacity (Ton)	Reach (mm)	Spread (mm)	Stroke (mm)	Weight (Kg)
YB-3	3	145	150	60	3.5
YB-5	5	190	200	60	7
YB-10	10	250	250	80	12
YB-15	15	285	350	80	18
YB-20	20	305	400	80	24
YB-30	30	310	450	90	28
YB-40	40	320	500	100	35
YB-50	50	330	600	100	45
YB-60	60	350	700	120	100
YB-80	80	520	800	120	120

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).

Extended Warranty: Optional coverage available up to 36 months.

Global Support: 24/7 technical assistance and consistent spare parts supply.

Training: Comprehensive on-site or remote operation and maintenance training programs.

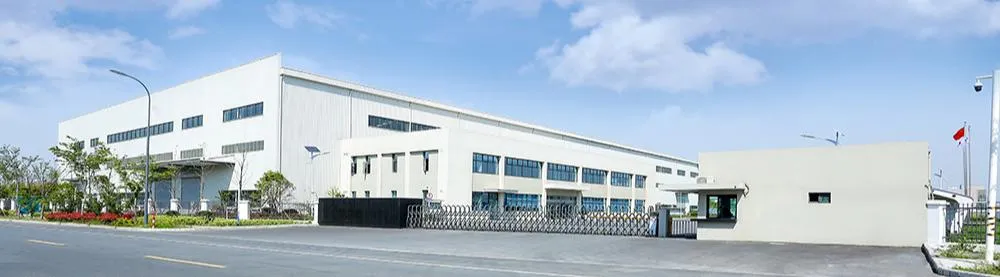

Professional Manufacturer

High Capacity Hydraulic Puller Production

Established as a high-technology enterprise, our facility focuses on integrating research, development, production, and service of hydraulic torque wrenches, hydraulic cylinders, nut cutters, pullers, and pumps. We utilize a modern production plant with internationally advanced hydraulic tool production facilities, material processing lines, and assembly units.

With over 10 years of development, our technology has reached peak industry standards, gaining CE, ISO14001, and ISO9001 certifications. We specialize in five major categories: Bolting tools, hydraulic lifting tools, hydraulic pulling tools, flange tools, and power packs.

Frequently Asked Questions

1. What warranty is provided with the hydraulic pullers?

All products include a 12-month warranty and lifetime after-sales service. We provide guidance on installation and use, along with free parts replacement during the warranty period.

2. Do you have global service outlets?

Our products are distributed in Germany, the United States, Italy, Australia, Peru, and several other countries. We work with local distributors to ensure professional support across these regions.

3. What is the typical delivery time for an order?

Standard stock items are usually shipped within 5-10 working days. For customized solutions or out-of-stock items, the delivery cycle is approximately 20-30 days.

4. What international certifications do your tools hold?

Our manufacturing processes and products are certified under CE, ISO9001, and ISO14001 standards, ensuring high quality and international safety compliance.

5. Can you provide door-to-door delivery?

Yes, we offer comprehensive logistics solutions including sea, air, rail, and road transportation to provide door-to-door delivery services based on your requirements.

6. What are the accepted payment terms?

We generally accept T/T at sight. For customized orders, a 30%-50% deposit is required, with the remaining balance settled before final delivery.
