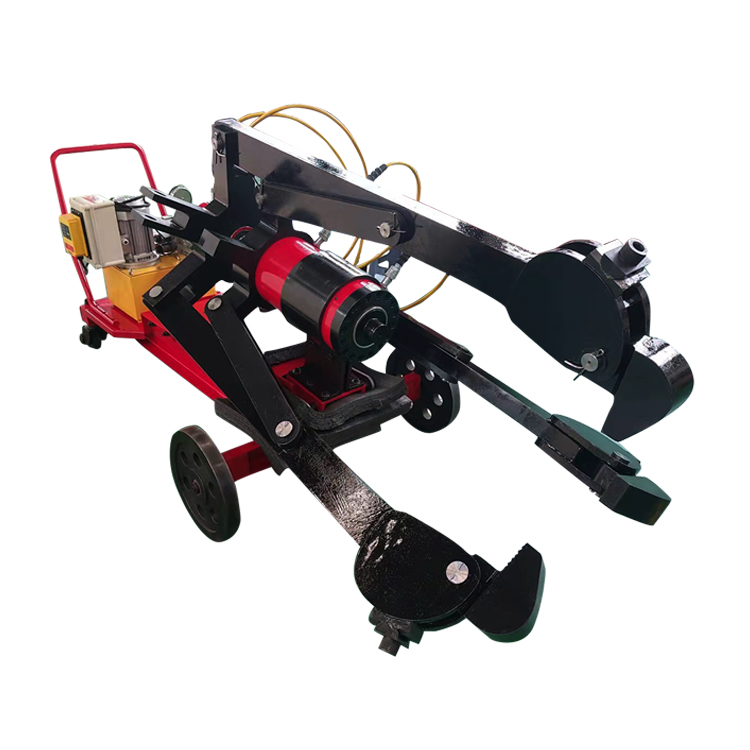

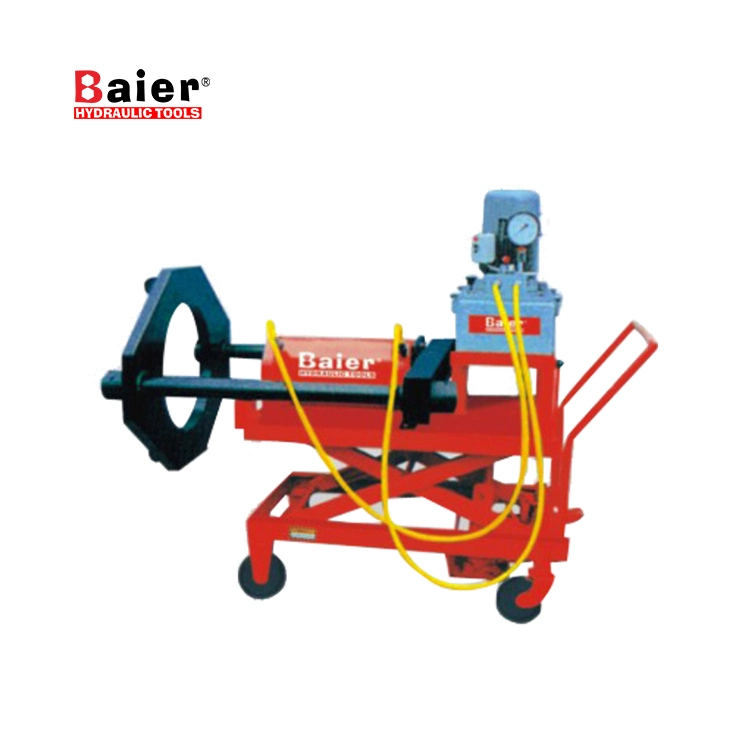

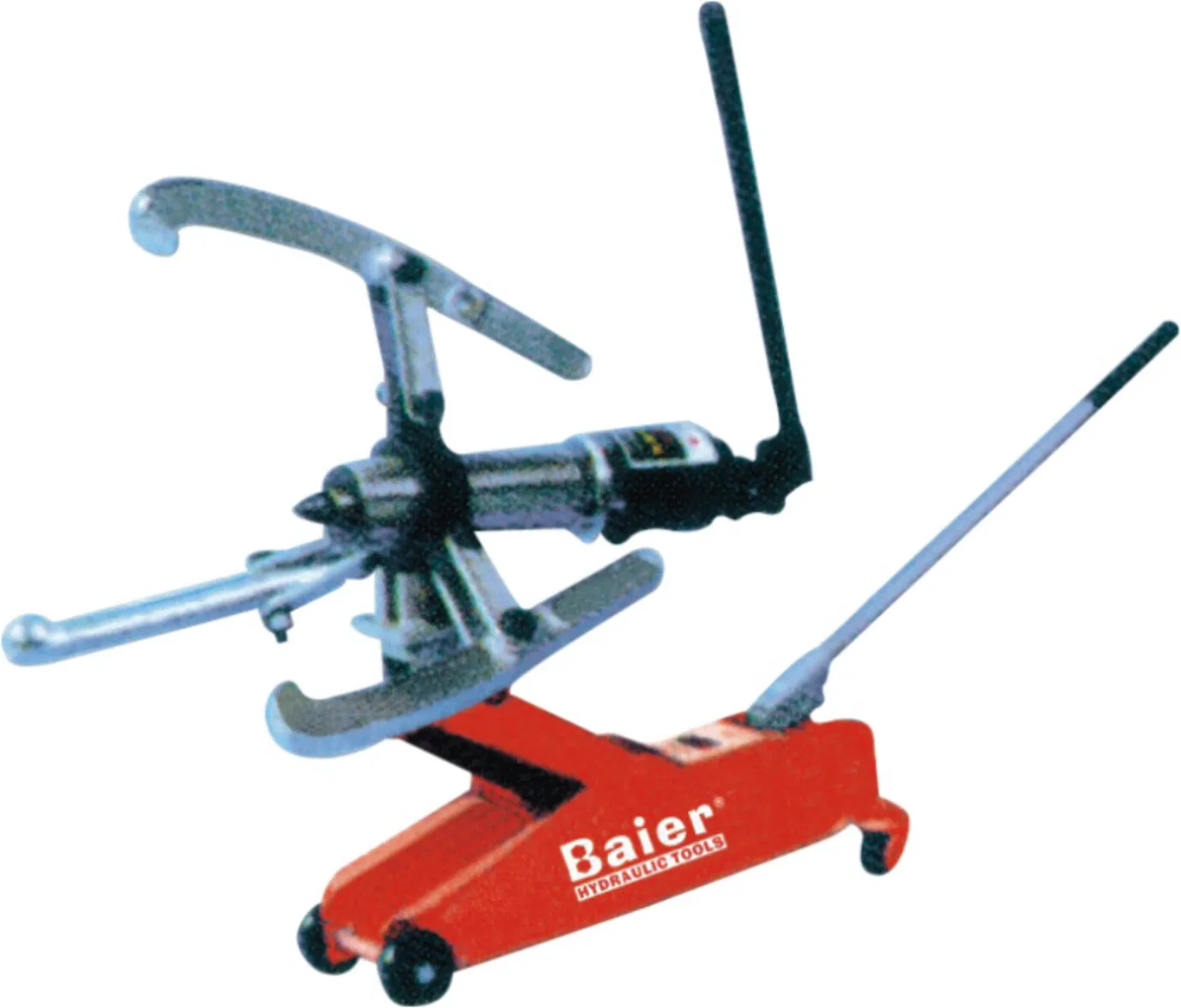

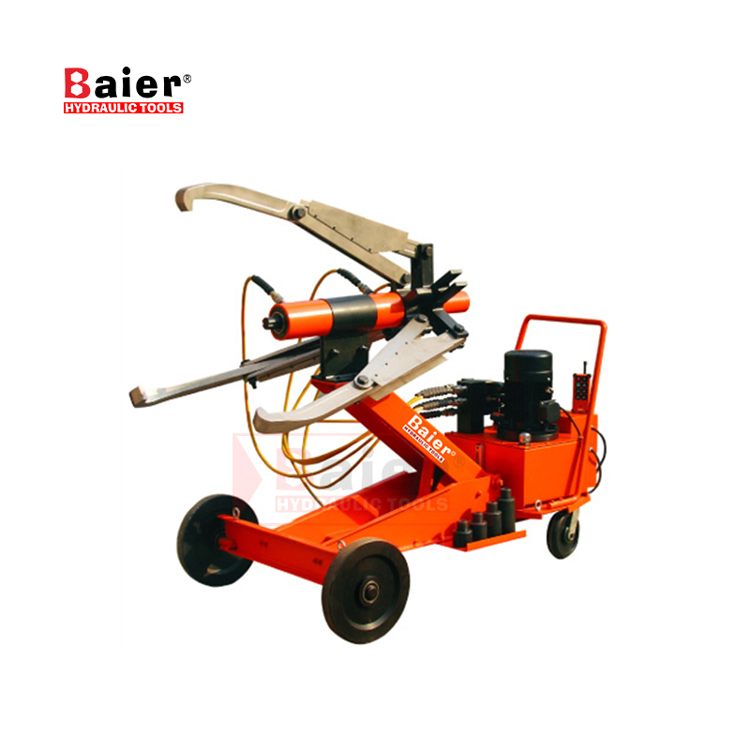

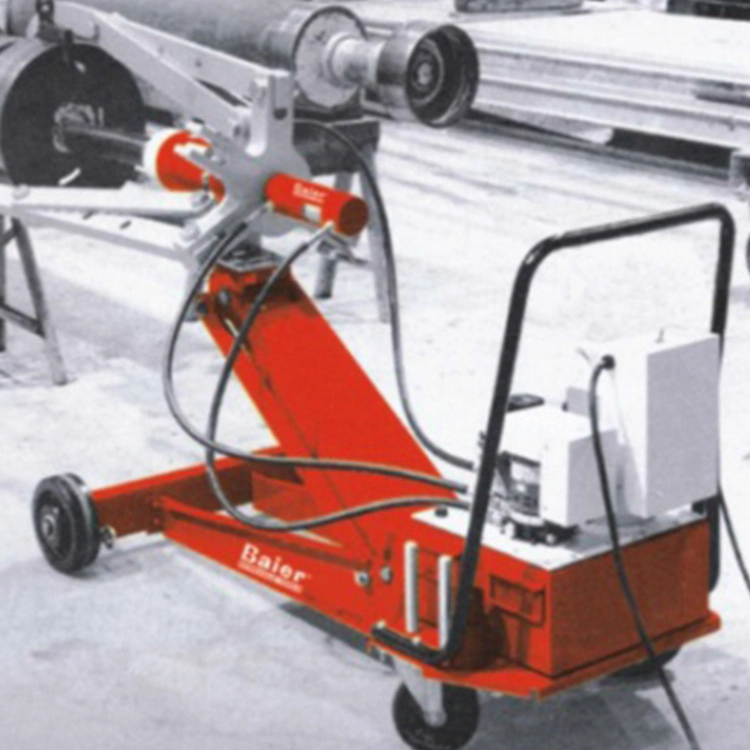

Manual Vehicle Hydraulic Puller Disassembly Industrial Tool Gearing Pullers

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
KS-20
Automatic Grade
Automatic
Usage
Petroleum, Construction, Metallurgy
Type
Hydraulic Pullers
Work Capacity
20 Ton
Effective Stroke
50 mm
Max Vertical Pulling Distance
230 mm
Horizontal Inner Dia.
50 - 350 mm
Horizontal Outer Dia.
150 - 480 mm
Claw
3 Jaws
Material
High Strength Steel Alloy
Warranty Time
12 Months
Application
Disassembly Discs, Gears, Flanges, Pulleys
Transport Package
Wooden Case
Production Capacity
5000 Pieces/Year
Product Description
  • Use ultra high strength alloy steel, interference type pulling design.
  • Integral type puller quick connector, horizontal top lifting device.
  • The adjustment is convenient and ensures safe operation.
  • Ideal for removing flanges, gears, bearings, pulleys, etc.

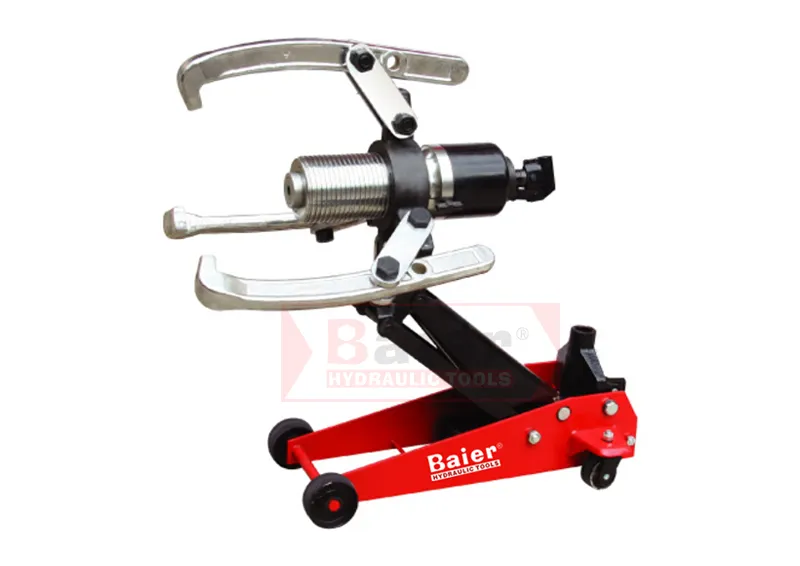

Hydraulic Puller Tool
Model KS-20 KS-30 KS-50
Work capacity (ton) 20 30 50
Spread distance (mm) 50 70 70
Vertical max pulling distance (mm) 230 260 400
Horizontal max inner diameter (mm) 50-350 100-550 150-650
Horizontal max outer diameter (mm) 150-480 200-650 200-750
Related Products

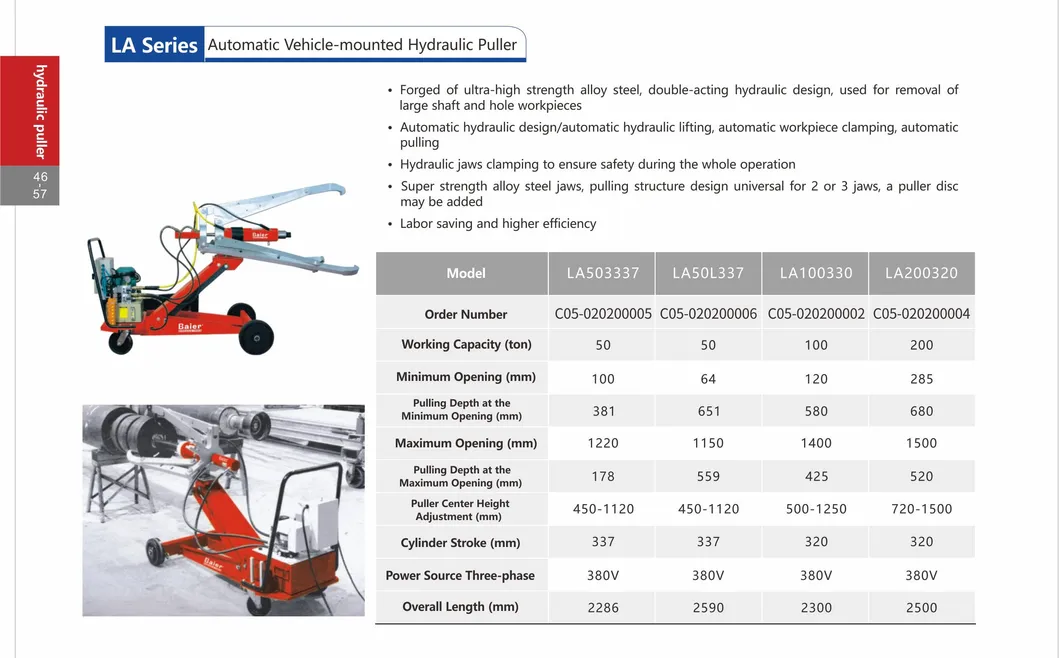

Related Hydraulic Tool 1

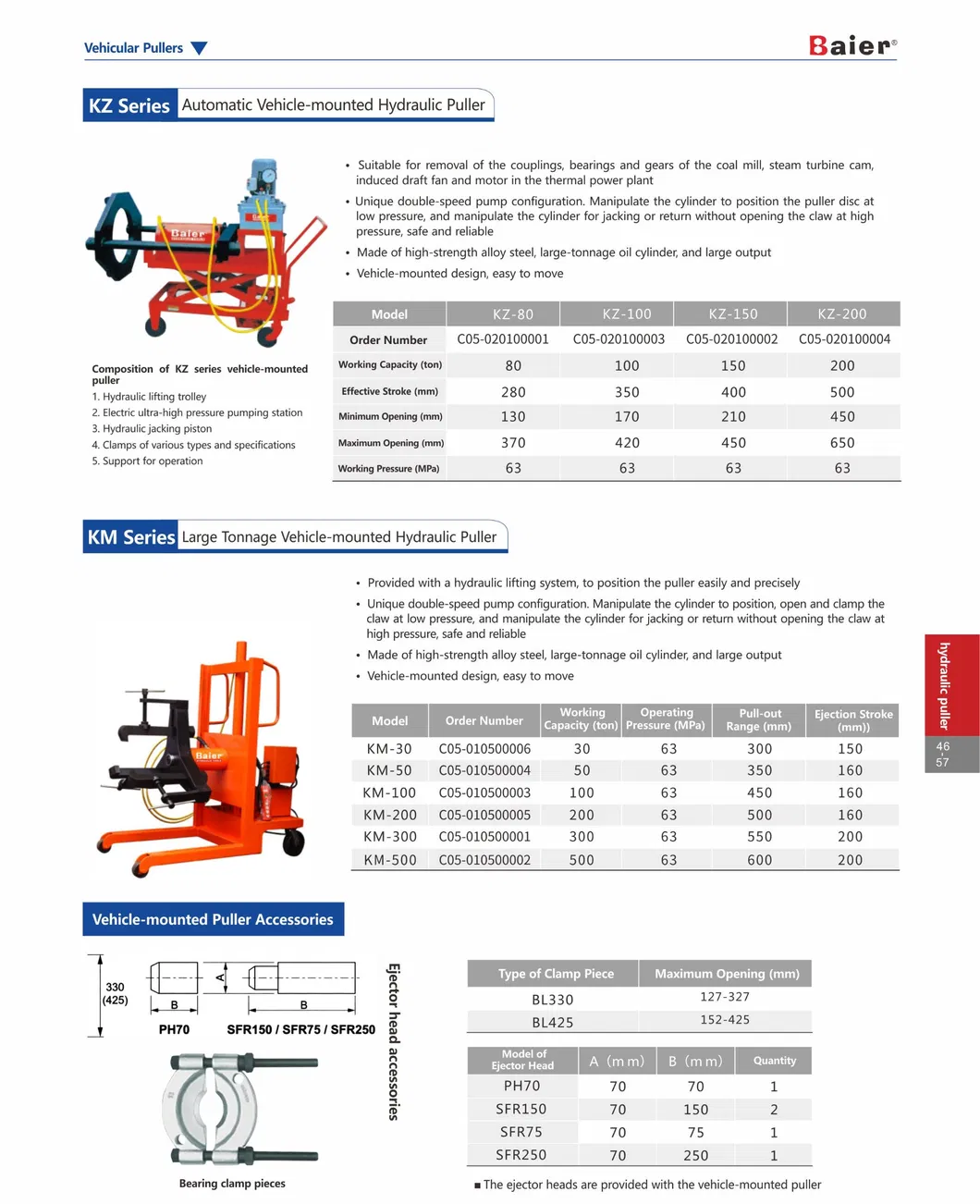

Related Hydraulic Tool 2
Packaging & Shipping

Package: Each tool is packed with professional export wooden cases and thick foam inside to ensure safety during transit.

Shipping: Goods are shipped by express or by sea. Faster shipping options via air are also available upon request.

Packaging Details
Expertise & Quality

As a high-technology enterprise established in 2009, we focus on integrating research, development, production, and service of hydraulic bolting and lifting tools. Our modern production plant incorporates internationally advanced facilities, material processing lines, and assembly equipment.

Our main categories include bolting tools, hydraulic lifting tools, hydraulic pulling tools, and flange tools. Our R&D and production capacities have reached the highest level in the industry, backed by CE, ISO14001, and ISO9001 certifications. Our products are trusted by thousands of institutions globally, exported to more than 50 countries across Europe, Southeast Asia, the Middle East, and South America.

Production Facility
After Sales Service
  • Free replacement of components or products if damaged due to manufacturing responsibility.
  • 12-month comprehensive warranty period after delivery.
  • Online guidance for operation, repair, and setting adjustments.
  • Continuous technical support and components supply beyond the warranty period.
  • Total engineering solutions for complex combined hydraulic tool applications.
Frequently Asked Questions
What after-sales service do you provide?
All products enjoy a 12-month warranty and lifetime after-sales service. Our professional team provides installation guidance, free repairs, or part replacements during the warranty period.
Do you have local agents or service outlets?
Our products are sold in Germany, the USA, Italy, Australia, the UAE, and more. We have distributors in several countries and are expanding our service centers worldwide.
How long does it take to deliver the product?
Stock items are usually shipped within 5-10 working days. For customized or out-of-stock products, the delivery time is approximately 20-30 days.
Can you deliver to our local area?
Yes, we provide door-to-door logistics services including railway, road, sea, air, and multimodal transportation solutions based on your requirements.
What are your payment terms?
We generally accept T/T at sight. Stock products require 100% payment before shipping; customized products require a 30%-50% deposit with the balance settled before delivery.
Is technical support available online?
Yes, we provide online guidance for operation, repairing, and settings whenever clients need assistance, including remote video conferences for complex issues.
