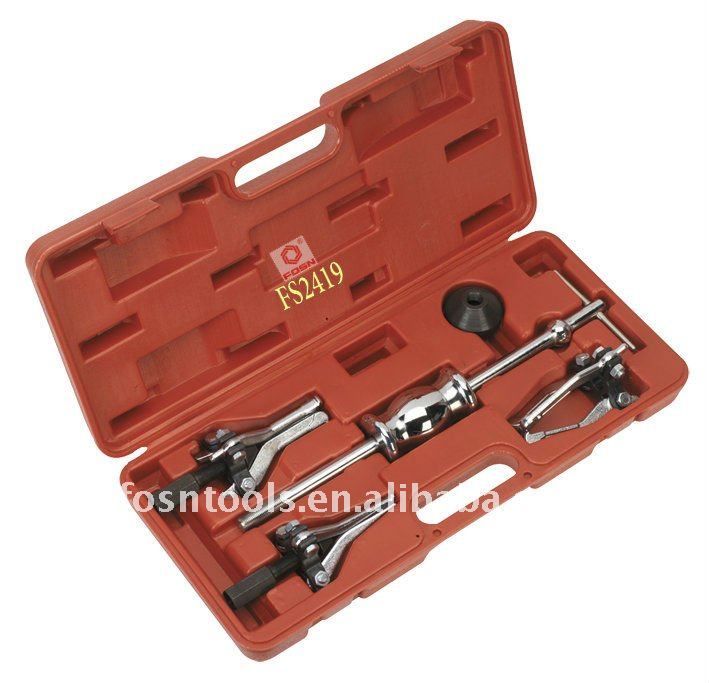

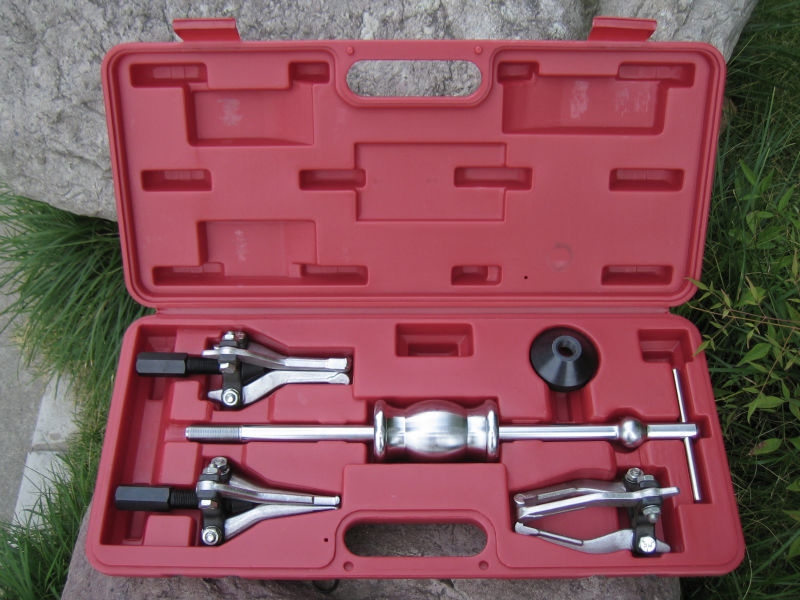

Slide Hammer Gear/Bearing Puller Set 5pc
Set includes three sets of 100mm triple leg pullers with locking features which clamp the jaws firmly inside/outside the gear or bearing.
1. Tbar (S45C Carbon Steel) 5/8×18t×L125mm
2. Hammer (S45C Carbon Steel) 53mm×L100mm×1.2kg
3. Nut
4. Center Screw
5. Washer
6. Internal Puller Capacity 15mm-30mm
7. Internal Puller Capacity 30mm-80mm
8. External Puller Capacity 15mm-80mm
9. Adapter 31 10
10. Adpter 18 6.5
11. Triple Head
12. Hydraulic ram included for laborsaving
13. Material: SCM415 hardened 40 °~45 °
• Drop-forged Chrome Vanadium steel puller arms with locking/gripping feature.
• Supplied in a heavy-duty carry-case for easy storage and transportation.
• Triple leg pullers design ensures balanced force distribution during operation.
Frequently Asked Questions
What materials are used in this puller set?
The set is constructed from high-quality S45C Carbon Steel and SCM415 hardened steel (40°~45°), with drop-forged Chrome Vanadium steel puller arms for maximum durability.
What is the pulling capacity of the internal and external pullers?
The internal puller capacity ranges from 15mm to 80mm (across two sizes), and the external puller capacity also covers 15mm to 80mm.
Does this tool help in reducing manual effort?
Yes, the set includes a hydraulic ram specifically designed for labor-saving operation, making it easier to remove stubborn gears and bearings.
How does the locking feature work on the puller arms?
The puller arms feature a locking/gripping mechanism that clamps the jaws firmly to the gear or bearing, preventing slippage during the extraction process.
Is the set portable for on-site work?
Absolutely. The entire 5-piece set is supplied in a durable carry-case, ensuring all components stay organized and are easy to transport to different job sites.
What is the weight of the slide hammer?
The hammer included in this set weighs approximately 1.2kg, providing sufficient force for effective pulling tasks.
