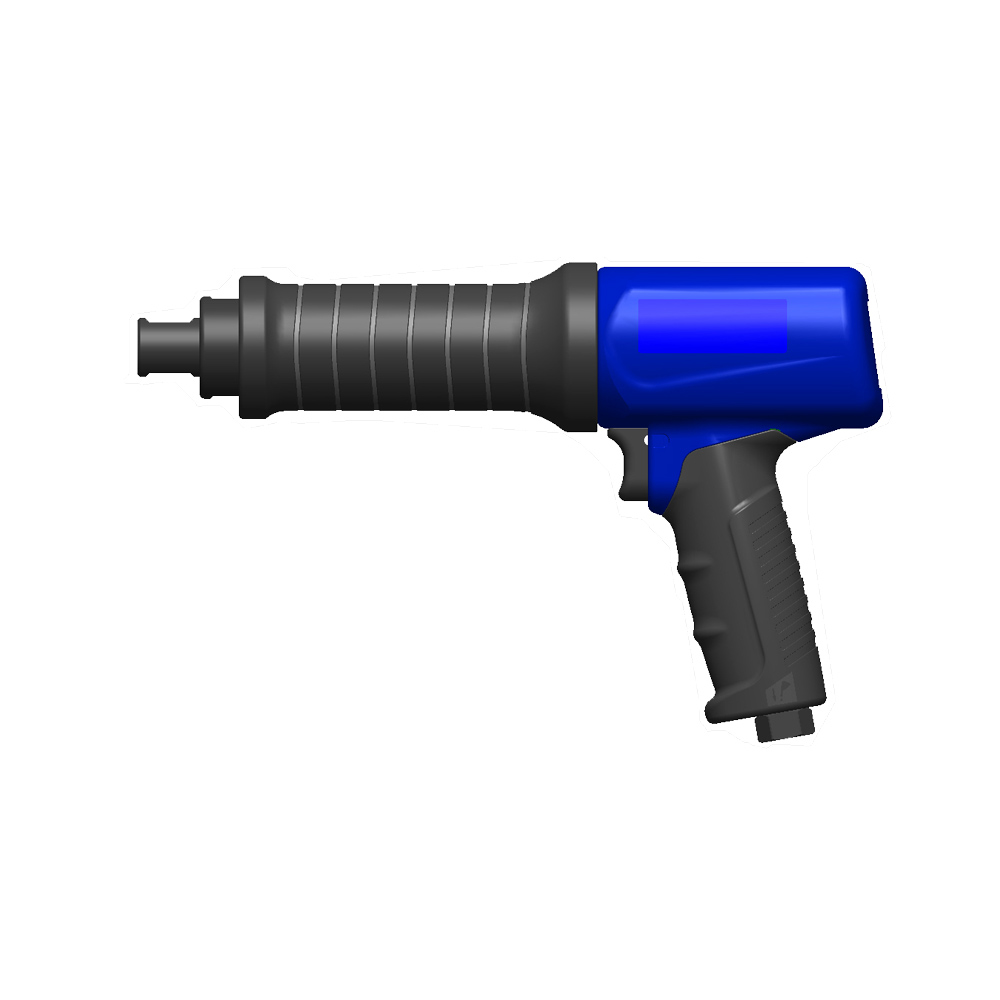

The HM-2067252 is a professional-grade pneumatic air slide hammer puller featuring patented vibration damping technology. With 8.5J of impact energy and a four-position power control system, it is engineered for demanding automotive repairs, bearing extraction, and industrial maintenance.
| Item | Specification |
|---|---|
| Model No. | HM-2067252 |
| Product Type | Air Slide Hammer Puller |
| Vibration Level | 4.093 m/s² |
| Impact Energy | 8.5 J |
| BPM | 2,500 BPM |
| Bore Diameter | 22 mm |
| Stroke Length | 84 mm |
| Air Inlet | 1/4" |
| Min. Hose Size | 3/8" |
| Common Thread | M12 × P1.0 |
The patent-pending reciprocating mechanism generates reverse impact force only. This maximizes pulling efficiency and eliminates wasted motion found in traditional tools.
Equipped with US and China patented technologies (US 11,571,797 B1, CN 116551630, US 11,628,550 B2), this system absorbs shock while maintaining extreme pulling force, significantly reducing fatigue during extended use.
Perfect for wheel hub removal, bearing extraction, rear axle service, and professional dent pulling or body panel restoration.
Designed for extracting seized or rusted components, machinery maintenance, and heavy-duty assembly/disassembly operations.
5/8"-18 M14 × P1.5 M18 × P1.5 M20 × P2.5 5/8"-10 Square-Type
