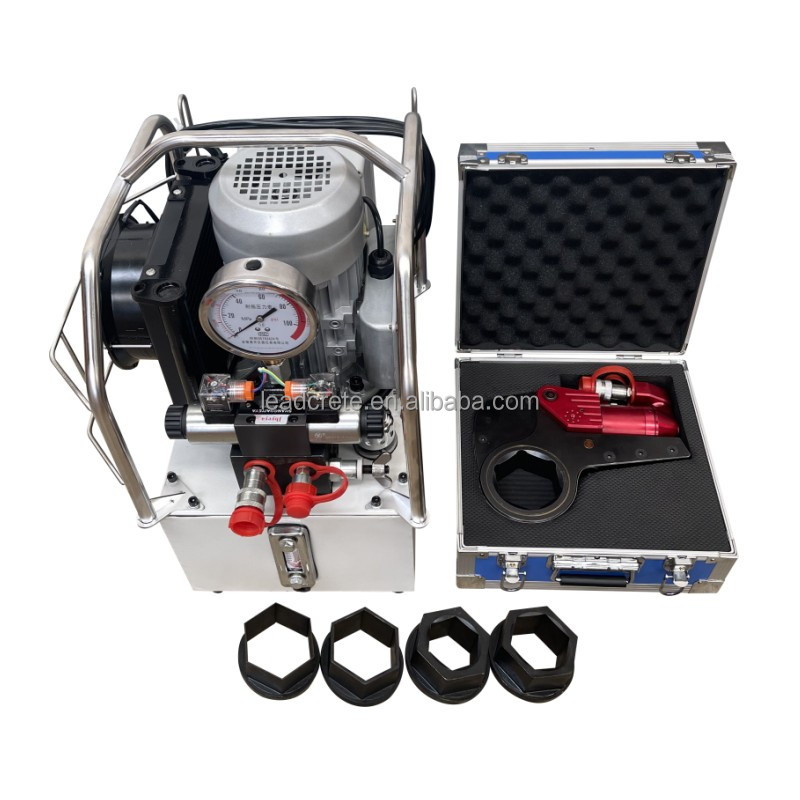

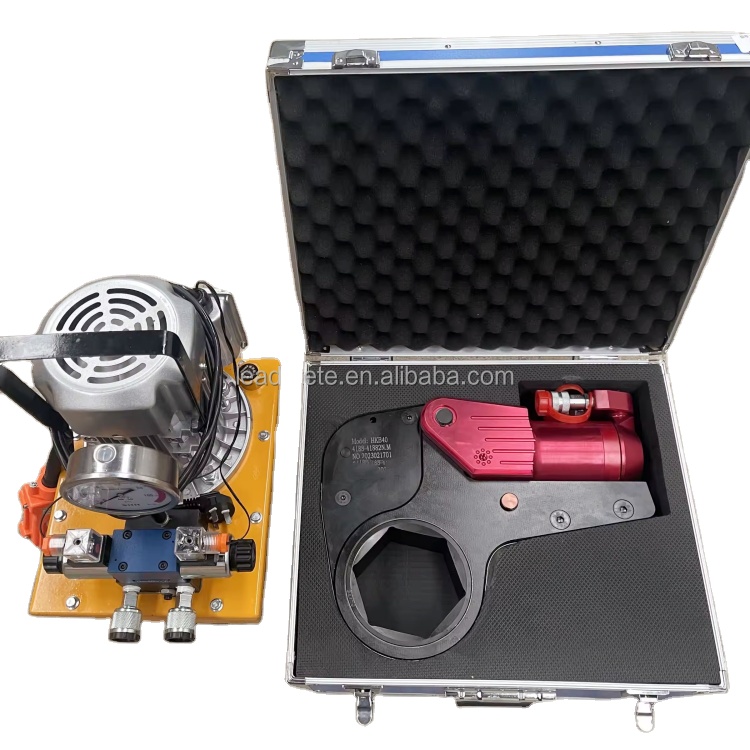

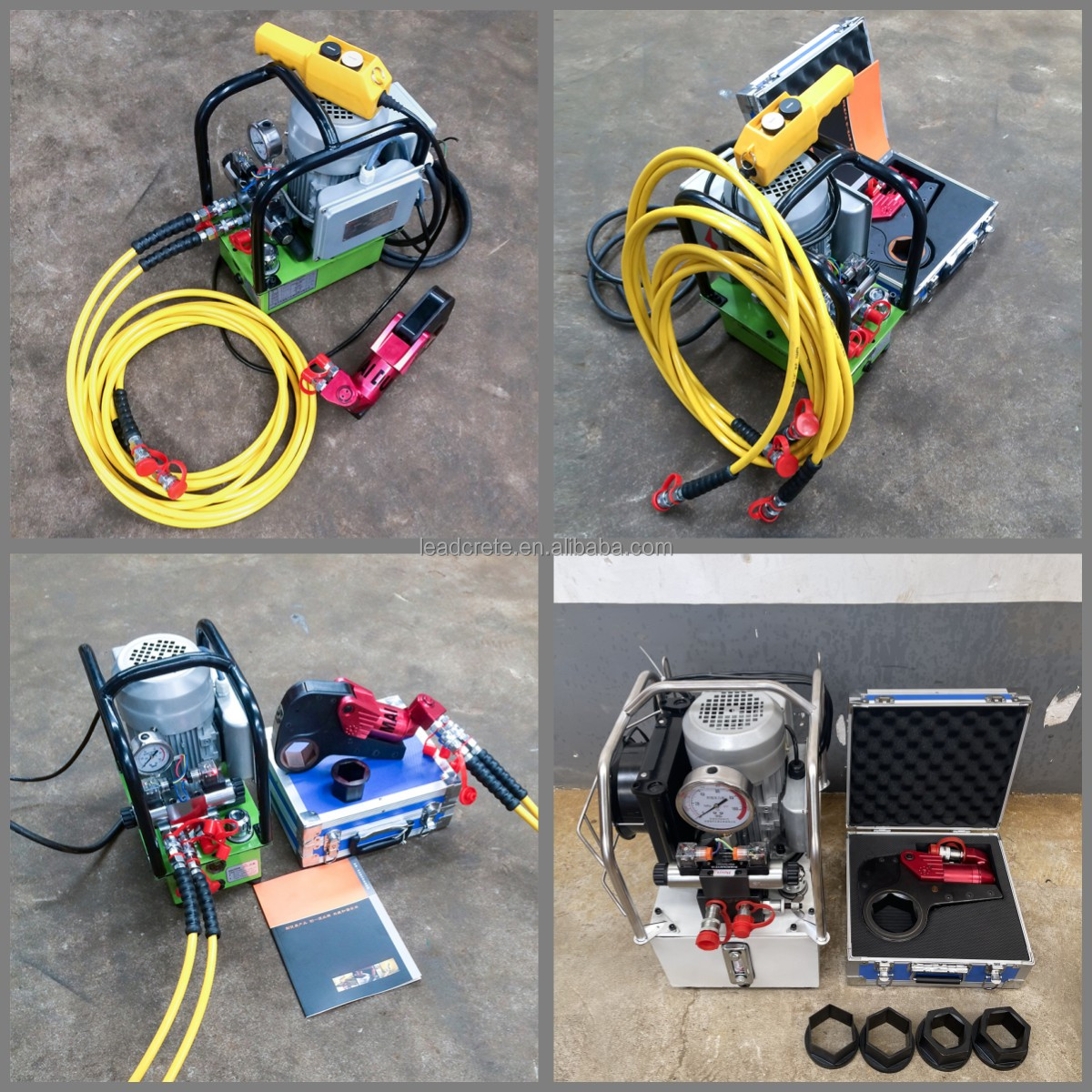

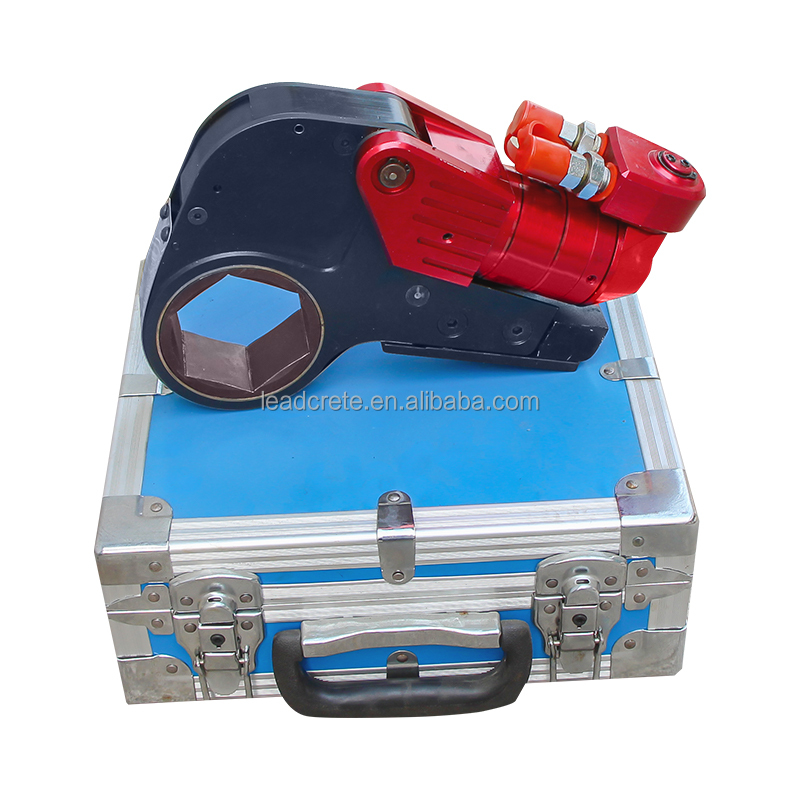

Factory Price Hydraulic Torque Wrench Tools Customized OEM Supported

Product Description

Product Description

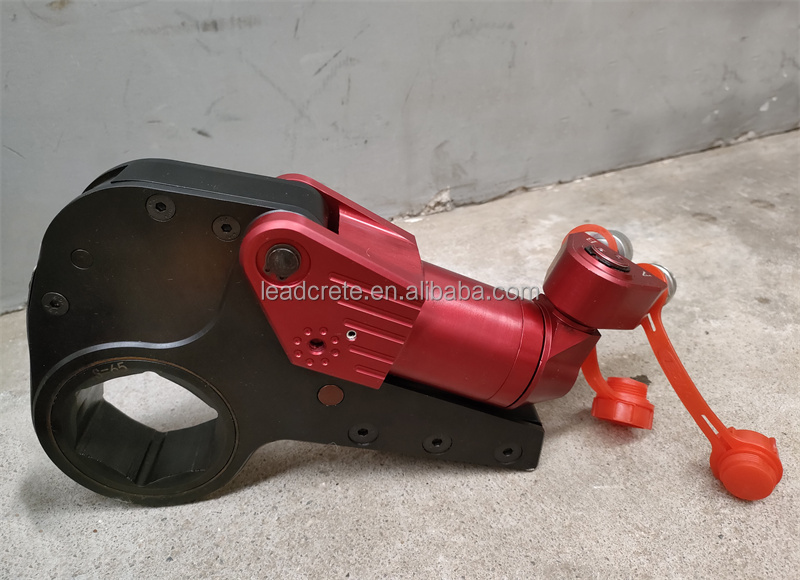

Product Description Image 1

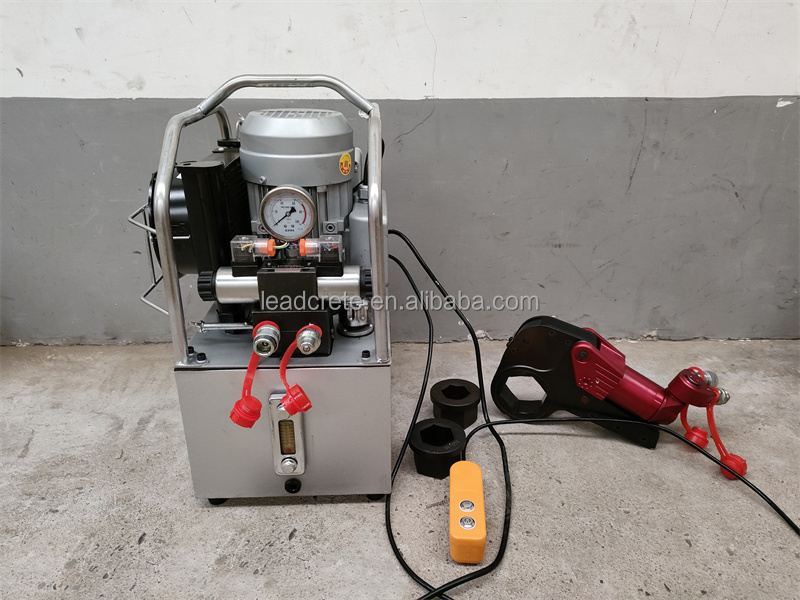

Product Description Image 2
Technical Parameters
Item HKB03 HKB05 HKB10 HKB20
Max. torque(Nm) 2266 5188 9855 17202
Min. torque(Nm) 227 519 986 1720
Screw Nut(mm) 27-50 27-65 50-90 65-115
Square Drive KB50 KB65 KB90 KB115
L1(mm) 205 251.3 302.5 367
H1(mm) 129 163 191 223
H2(mm) 100 136 166.5 198
W1(mm) 32 41 53 64
W2(mm) 50 66 83 99
Weight(kg) 2.3 4.9 9 16.3
Item HKB30 HKB40 HKB50
Max. torque(Nm) 23072 40639 50956
Min. torque(Nm) 2307 4064 5095
Screw Nut(mm) 75-135 80-155 130-200
Square Drive KB135 KB155 KB200
L1(mm) 400.5 457.5 502
H1(mm) 246 282 322
H2(mm) 224 265 328
W1(mm) 70 84 90
W2(mm) 110 132 144
Weight(kg) 18.1 30.2 39.5
Product Parameters

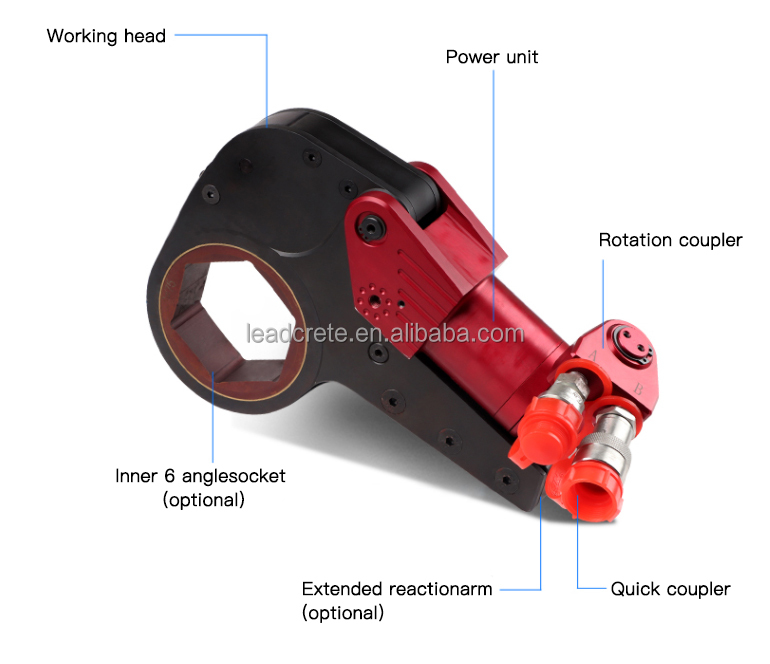

Parameters Image 1

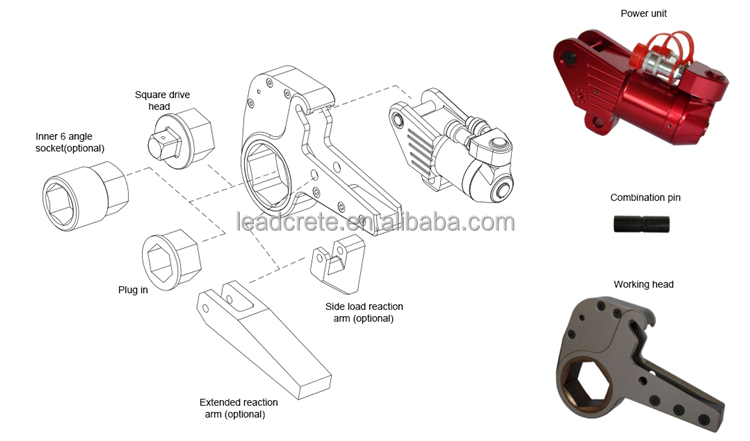

Parameters Image 2
01It adopts aluminum-titanium alloy material and integrally molded body to comprehensively strengthen the strength and toughness of the fuselage;
02360°X180° rotating hose joint, can be used in a small space, using precision ratchet, output torque accuracy up to ±3%;

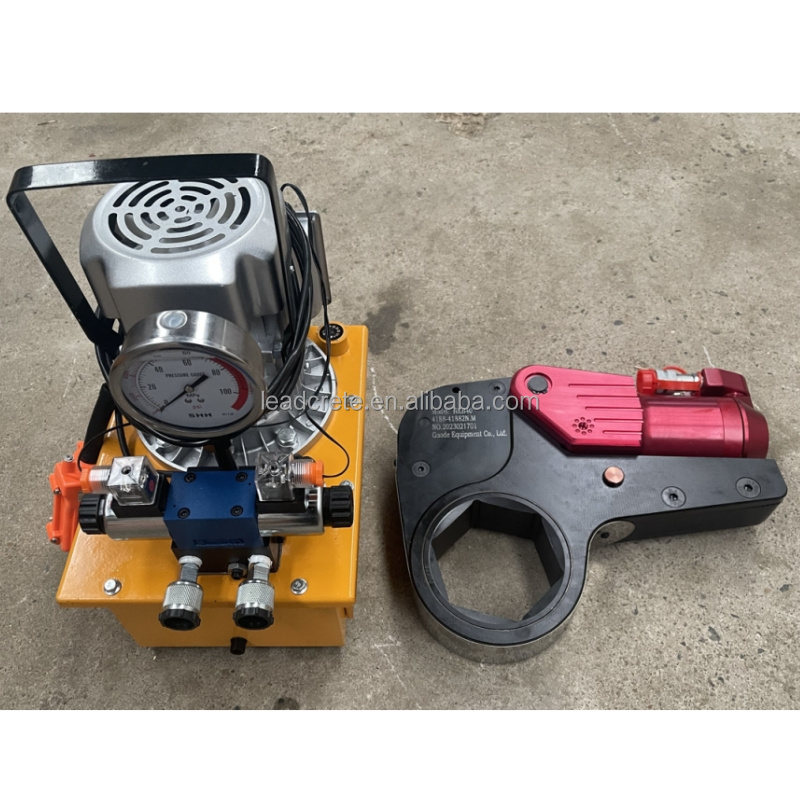

03The hollow hydraulic wrench is composed of a power head and a working head. It can be used for multiple purposes in one machine. One power head can be equipped with multiple working heads, and the working range is wide.
04Extendable metric and inch hexagon drive shaft and sleeve for the working head, suitable for use in tight spaces
05Locking drive shaft can be customized according to user requirements
06The movable handle is easy to move and operate
Details Images

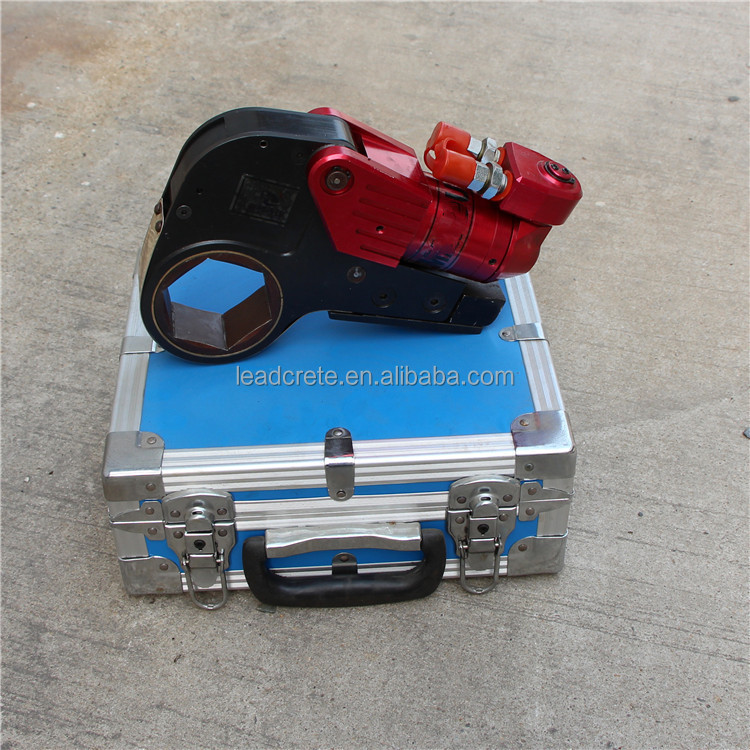

Detail Image 1

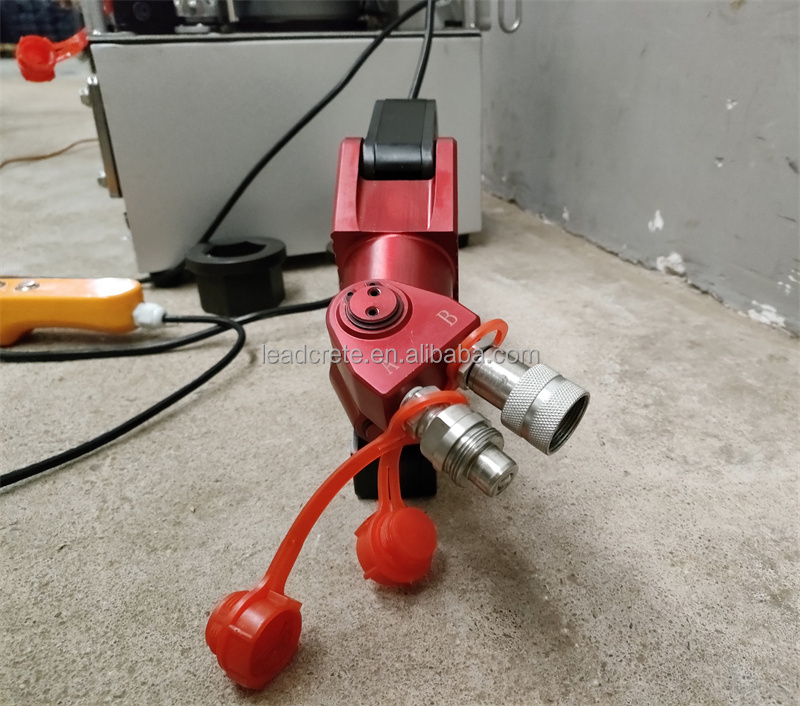

Detail Image 2

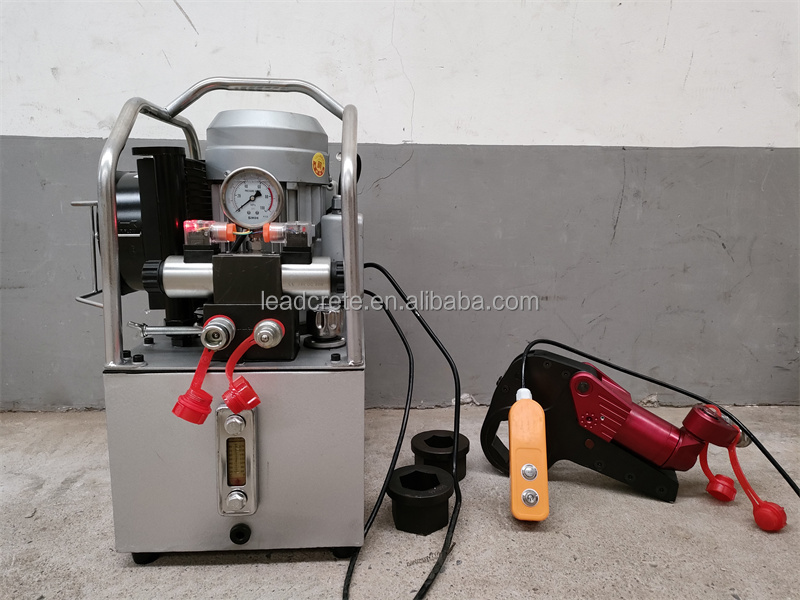

Detail Image 3
Product Feature
High strengthen aluminium-titanium alloy body.
700 bar maximum working pressure, Repeat accuracy ±3%.
360° multi-positional swivel quick release couplings.
Working with the high resistance sockets, suitable for more size of screws.
360° Adjustable reaction arm with safety lock feature, can be used without reaction arm.

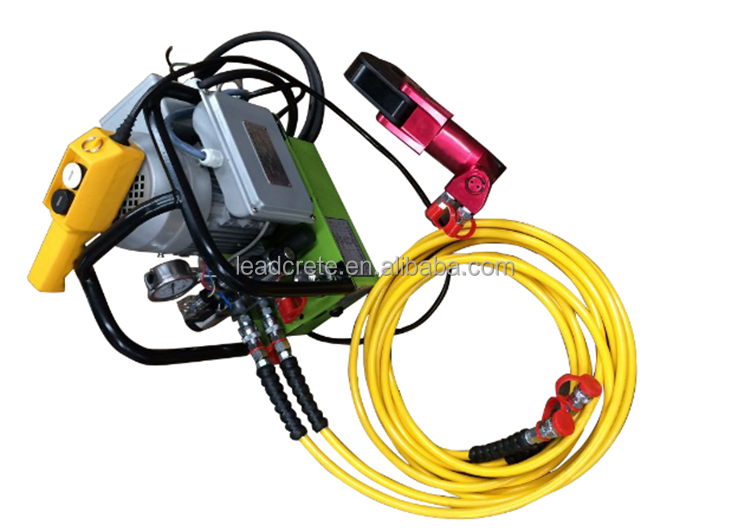

Feature Illustration
Application

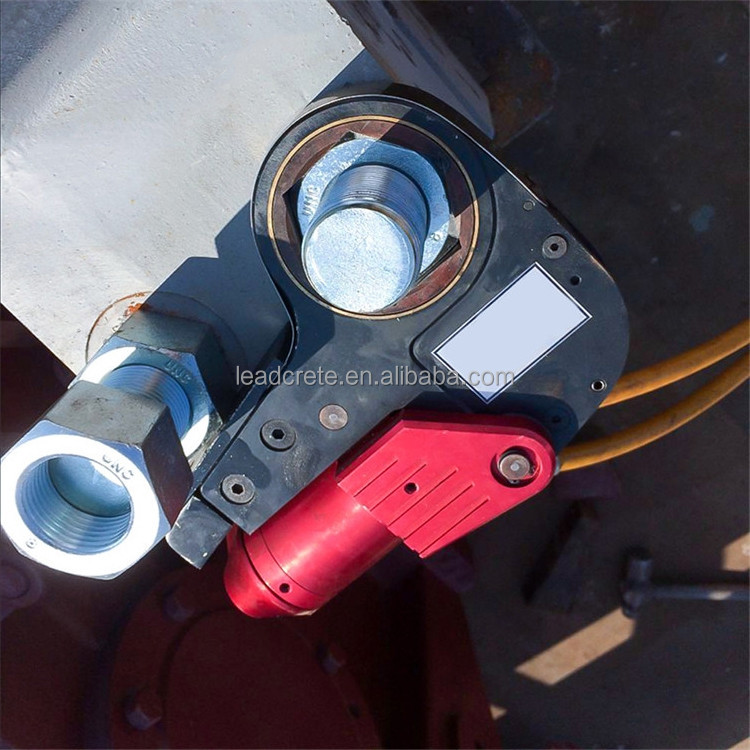

Application Image 1

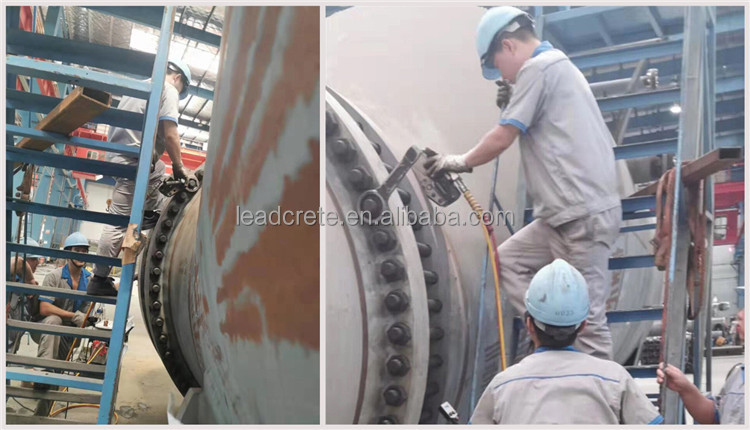

Application Image 2
Production Display
Production Display 1
Production Display 2
Production Display 3
Frequently Asked Questions
What is the accuracy of the torque output?
The hollow hydraulic wrench features a precision ratchet system that ensures a torque output accuracy of ±3%.
What materials are used in the construction of the wrench?
The body is manufactured using high-strength aluminum-titanium alloy and an integrally molded process to enhance overall durability and toughness.
Can this wrench be used in confined or narrow spaces?
Yes, the 360°x180° rotating hose joint and the hollow design with extendable metric/inch drive shafts make it ideal for use in tight and restricted spaces.
Is the drive shaft customizable?
Yes, the locking drive shaft can be customized according to specific user requirements and applications.
How versatile is the hollow hydraulic wrench system?
It is highly versatile; the system consists of a power head and a working head. A single power head can be equipped with multiple working heads, covering a wide range of bolt sizes.
What is the maximum working pressure of this equipment?
The maximum working pressure for these hydraulic wrenches is 700 bar.
