Donghuan Overhead Power Line 42T Hydraulic Cable Puller Machine Transmission Cable Stringing Equipment Alloy Steel 420KN 350KN

1 / 5

Donghuan Overhead Power Line 42T Hydraulic Cable Puller Machine Transmission Cable Stringing Equipment Alloy Steel 420KN 350KN

Send Inquiry

Product Description

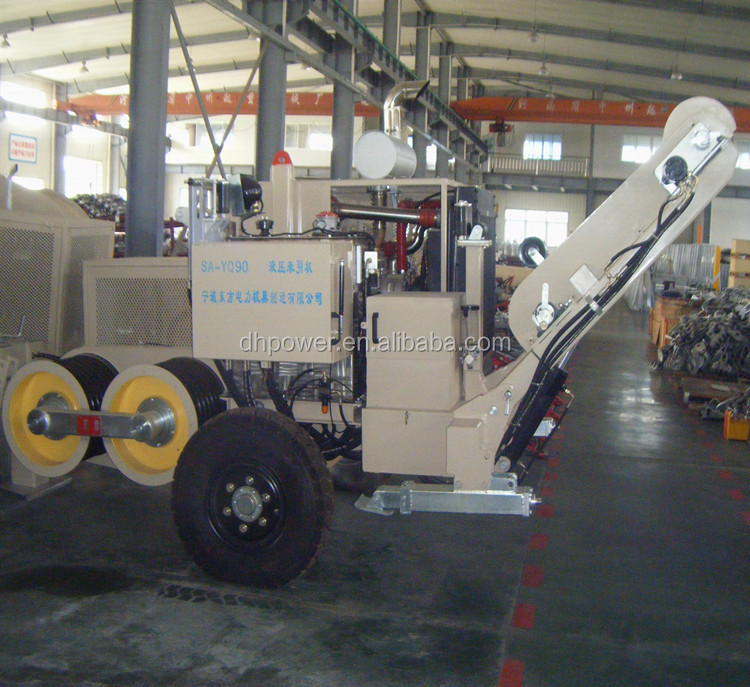

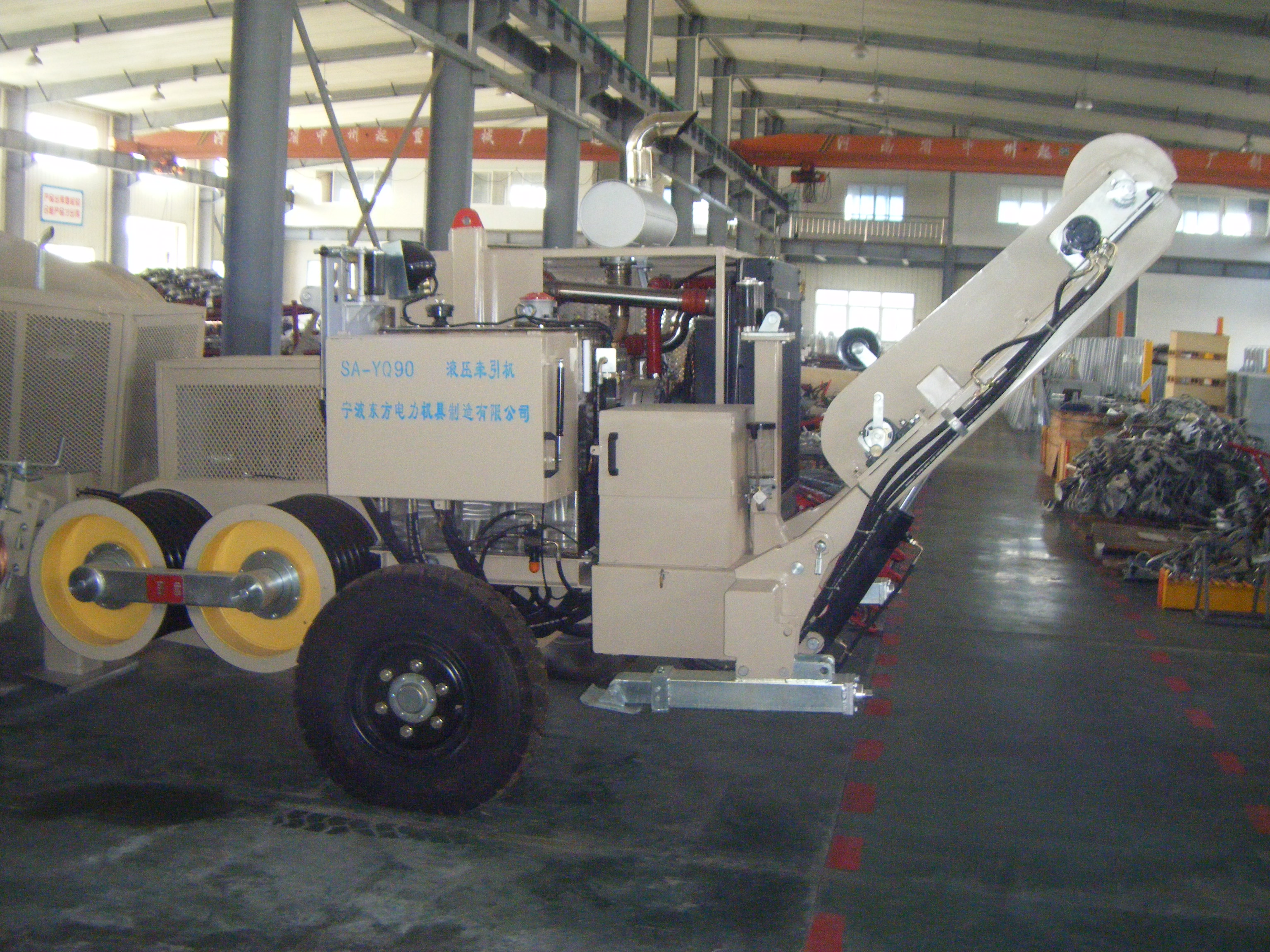

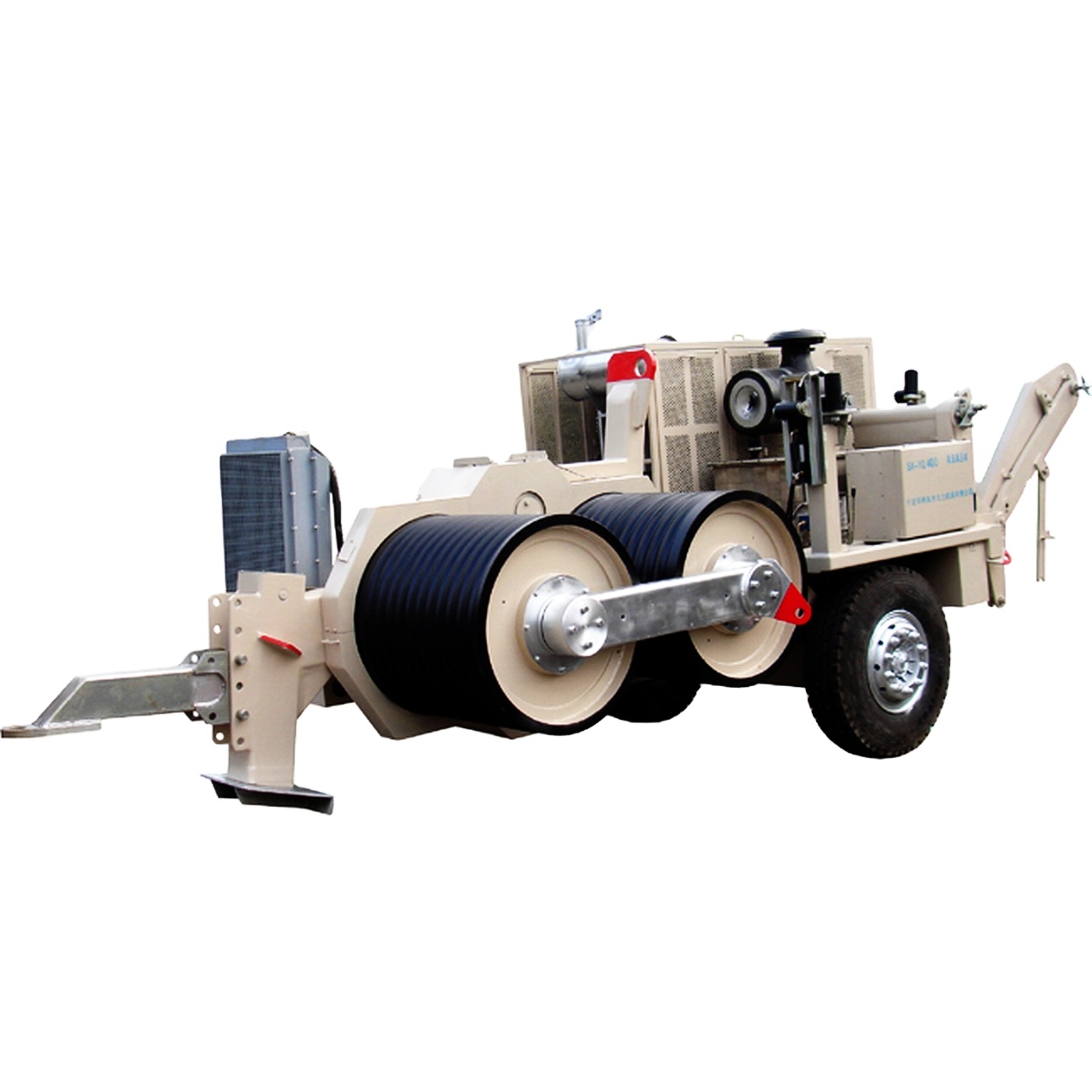

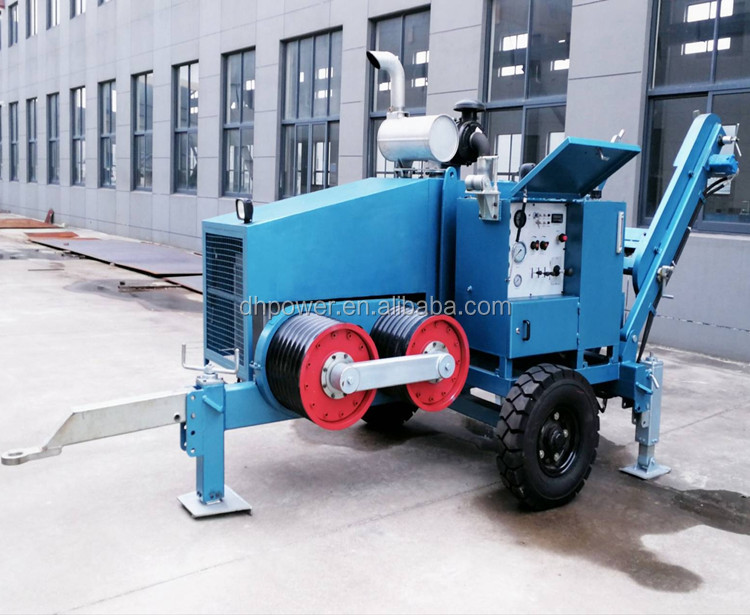

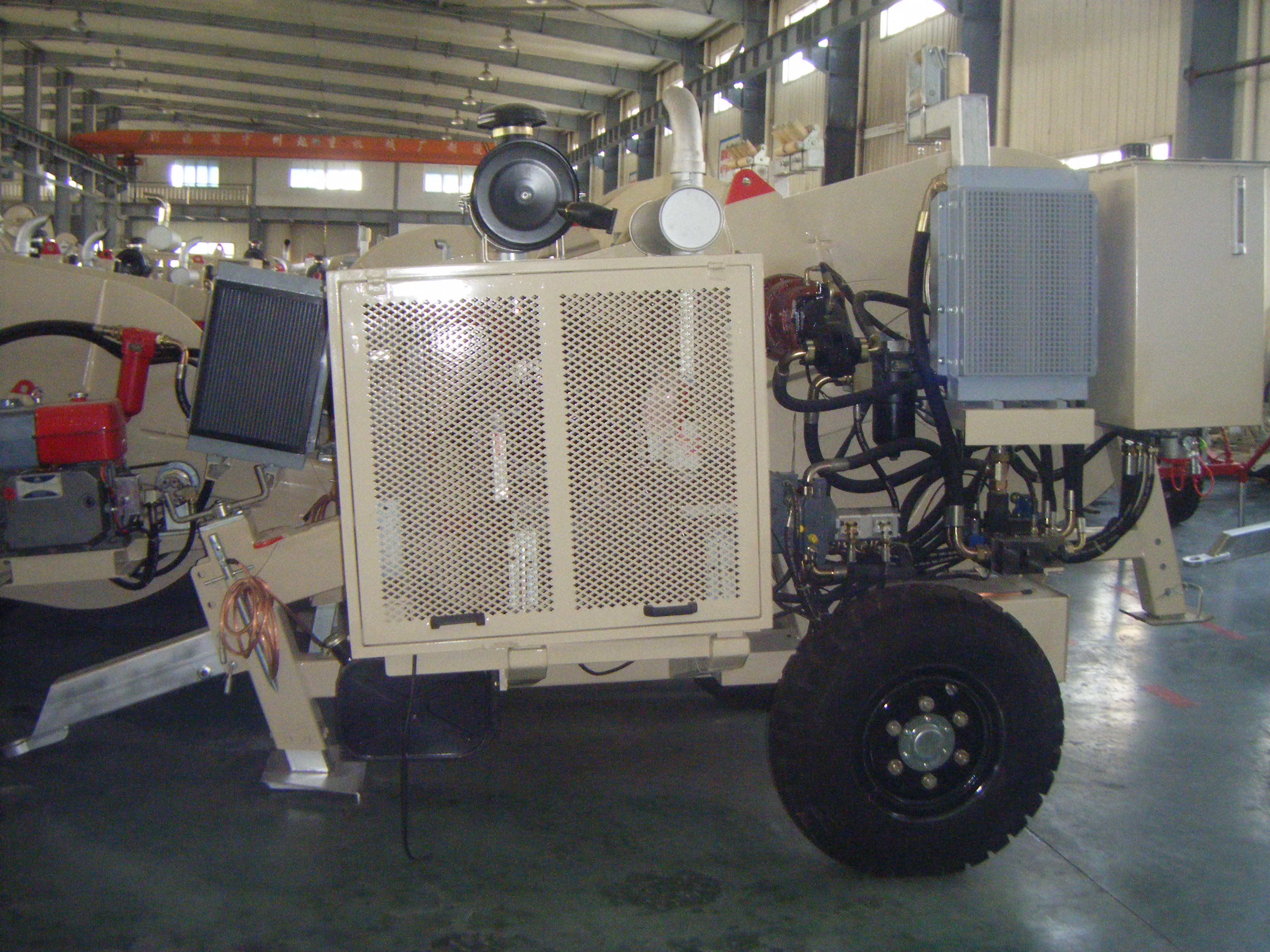

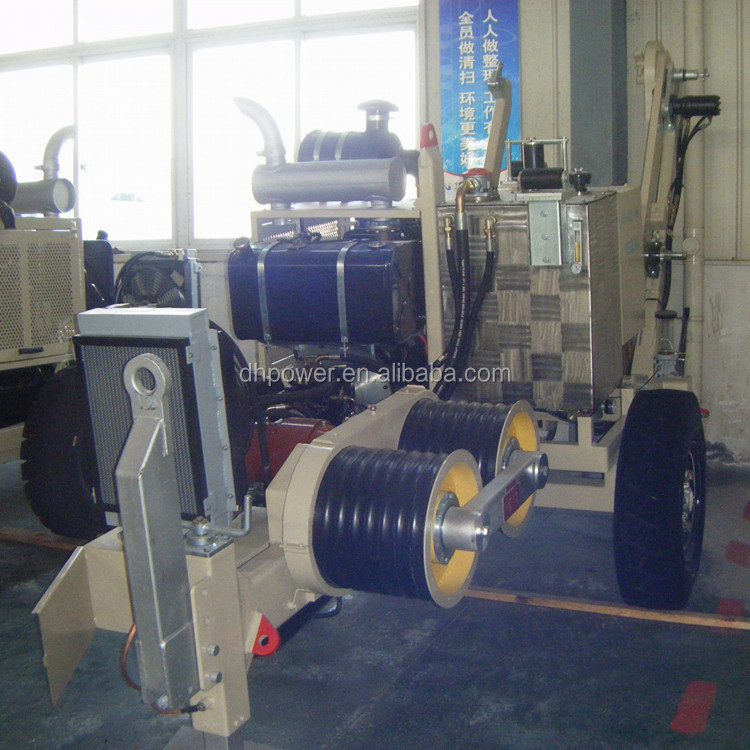

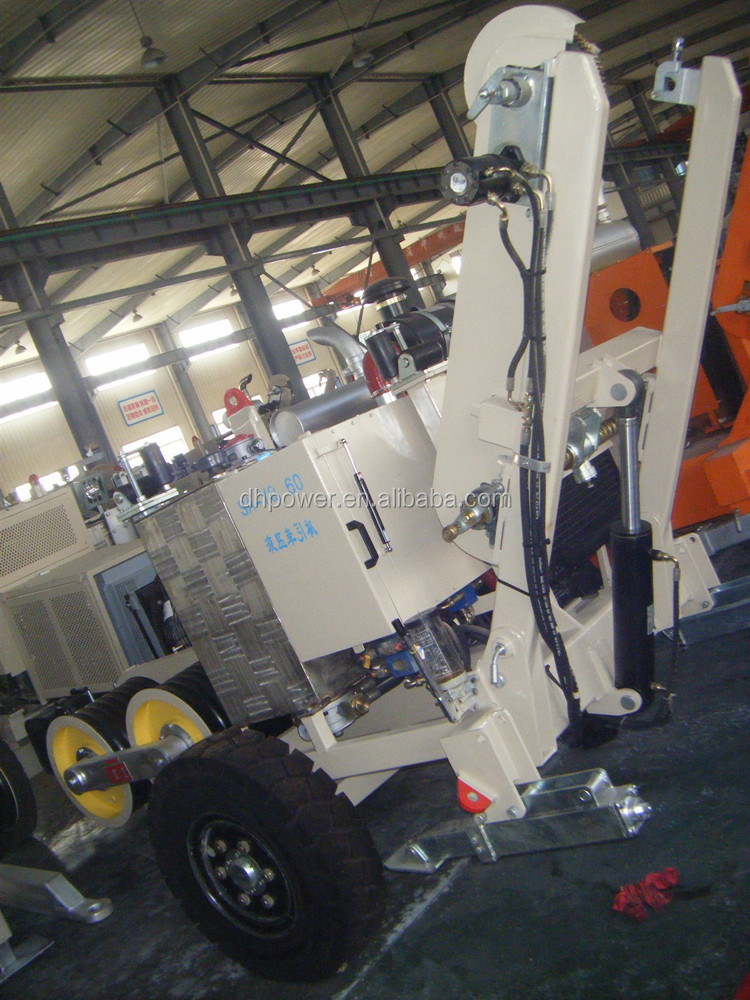

Overhead Power Line 42T Hydraulic Cable Puller Machine, Transmission Cable Stringing Puller Equipment

Configuration

Traction force and traction speed are stepless adjustable with intuitive display.

Maximum traction can be preset with automatic overload protection.

Automatic braking without pressure ensures operation safety during sudden flameout.

Equipped with wire rope automatic winding device for convenient loading and unloading.

Technical Specifications

Item number		07001	07011	07031	07041	07051	07061	07065	07071	07075
Model		QY-30Y	QY-40Y	QY-60Y	QY-90Y	QY-180Y	QY-220Y	QY-250Y	QY-300Y	QY-420Y
Maximum pull force (KN)		30	40	60	90	180	220	250	300	420
Continuous pull force (KN)		25	35	50	80	150	180	200	250	350
Max Speed (KM/H)		5	5	5	5	5	5	5	5	5
Groove diameter (MM)		Φ300	Φ400	Φ460	Φ520	Φ630	Φ760	Φ820	Φ960	Φ960
Number of grooves		7	7	7	7	9	10	10	10	11
Max steel rope (MM)		Φ13	Φ16	Φ18	Φ20	Φ24	Φ30	Φ32	Φ38	Φ45
Connector diameter (MM)		Φ40	Φ50	Φ60	Φ60	Φ63	Φ75	Φ80	Φ80	Φ80
Engine power (KW/RPM)		31/2200	60/2000	77/2800	123/2500	209/2100	243/2100	261/2100	298/2100	402/2100
Dimensions (M)		3.2x1.6x2	3.5x2x2	3.8x2.1x2.3	3.5x2.1x2.5	5.5x2.2x2.6	5.7x2.3x2.6	5.8x2.4x2.6	5.9x2.5x2.9	6.1x2.6x2.8
Weight (KG)		1500	2500	3000	4300	7500	8000	9000	11500	14800
Rope Tray	Mode	GSP 950	GSP 1400	GSP 1400	GSP 1400	GSP 1600	GSP 1600	GSP 1600	GSP 1900	GSP 1900
Rope Tray	Item No.	07125A	07125C	07125C	07125C	07125D	07125D	07125D	07125E	07125E

Product Gallery

Frequently Asked Questions (FAQ)

Q1: What is the maximum pull force capacity available for these machines? A: The pull force ranges from 30KN for the smallest model (QY-30Y) up to 420KN for the heavy-duty QY-420Y model.

Q2: How is the traction force controlled during operation? A: The traction force and speed are steplessly adjustable, and the maximum traction can be preset with automatic overload protection.

Q3: What safety features are included for system pressure loss? A: The machine includes an automatic braking system that activates without pressure, ensuring safety if the engine flames out or pressure is lost.

Q4: Does the equipment support automatic rope management? A: Yes, it features a wire rope automatic winding device that handles automatic rope laying for easier loading and unloading.

Q5: Can these machines handle different diameters of steel wire ropes? A: Yes, depending on the model, they can accommodate steel ropes ranging from Φ13mm up to Φ45mm.

Q6: Are the displays intuitive for operators? A: Absolutely. The machine provides an intuitive display for monitoring traction force and speed in real-time.
